Block STU 1600/2x115 Transformer 1600VA Low Inrush Screw Terminals

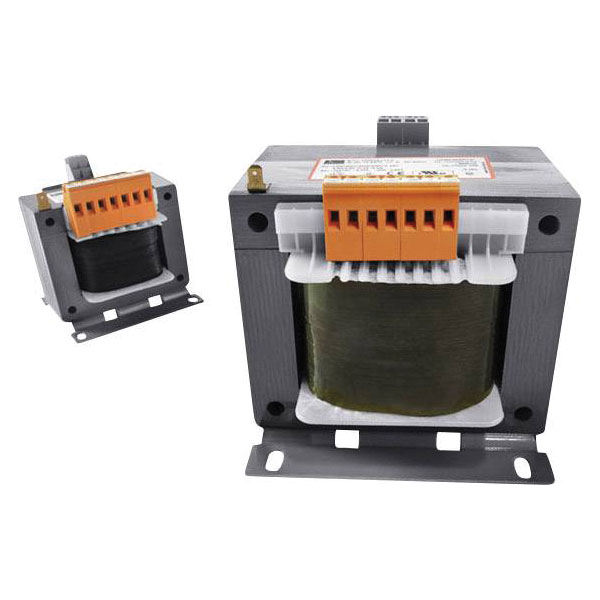

Image Representative of Range

Block STU 1600/2x115 Transformer 1600VA Low Inrush Screw Terminals

Block
Extended range
Order Code:

01-6431

Brand: Block MPN: STU 1600/2x115
Qty Unit Price (Ex VAT)
1+ £292.39
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 9 days

Block's STU 1600/2x115 is a versatile control transformer with an output of 1600 VA, supporting a range of voltages from 210 V AC to 540 V AC. This safety and isolation transformer is ideal for automation and mains transformation applications. It is designed for use in environments requiring reliable voltage adaptation and electrical isolation.
Connection Screw terminal
Design type open
Dim (L x W x H) 146 x 192 x 182 mm
Efficiency 94%
Fitting method Base plate
Frequency 50 - 60Hz
Height 182mm
Input voltage (number x voltage) 1 x 210 V AC, 230 V AC, 250 V AC, 380 V AC, 400 V AC, 420 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 520 V AC, 540 V AC
Insulation class VDE = B, UL = class 105
Length 146mm
Max. ambient temperature +40°C
Misc Attribute STU 1600/2x115
Mounting Type L-piece
No. of inputs 1
No. of outputs 2
Output voltage (number x voltage) 2 x 115 V AC, 230 V AC
Power 1600VA
Primary Voltage 210 / 230 / 250 / 380 / 400 / 420 / 440 / 460 / 480 / 500 / 520 / 540V
Protection class I
RoHS-compliant Yes
Standards VDE 0570 Part 2-4, DIN EN 61558-2-2, EN 61558-2-2, IEC 61558-2-4, UL 5085-1/-2, CSA 22.2 No.66
Test mark cULus recognized
Type Control transformer
Weight 17.80kg
Width 192mm
