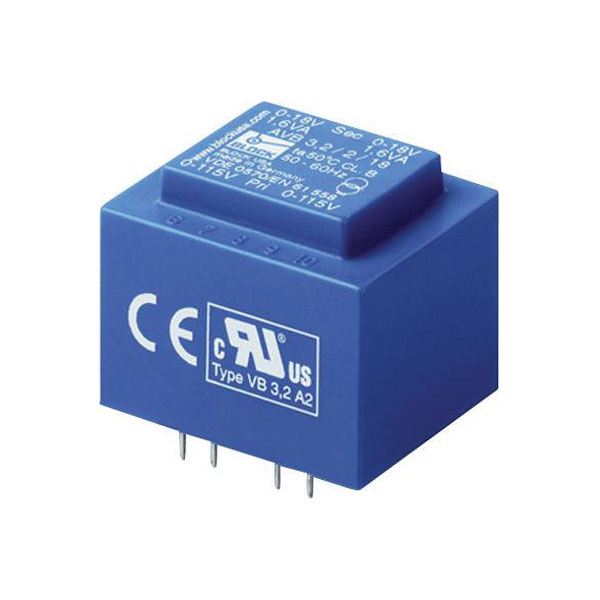

Block AVB 2,3/2/15 PCB Mount Transformer 2x115V 15V AC 2.30VA 76mA

Image Representative of Range

Block AVB 2,3/2/15 PCB Mount Transformer 2x115V 15V AC 2.30VA 76mA

Block
Standard range
Order Code:

01-6321

Brand: Block MPN: AVB 2,3/2/15
Qty Unit Price (Ex VAT)
1+ £5.64
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
14 in stock, despatched in 4 working days

Block's AVB 2,3/2/15 PCB mount transformer features dual input voltages of 2 x 115 V and dual output voltages of 2 x 15 V AC with a power rating of 2.30 VA and a current of 76 mA. Designed for automation and electronic systems, these transformers are ideal for integration in printed circuit board applications. The compact design also supports SMD mounting for efficient space utilisation.
Type PCB mount transformer
Connection Soldering
Dim (L x W x H) 32.3 x 27.3 x 29 mm
Frequency 50 - 60Hz
Height 29mm
Input Voltage 115V
Input voltage (number x voltage) 2 x 115 V
Insulation class VDE = B, UL = class 105
Length 32.3mm
Max. ambient temperature +70°C
Misc Attribute AVB 2,3/2/15
No. of inputs 2
No. of outputs 2
Output Current 76mA
Output voltage 15V AC
Output voltage (number x voltage) 2 x 15 V AC
Power 2.30VA
Protection class II (prepared)
RoHS-compliant Yes
Weight 0.11kg
Width 27.3mm
