BKL Electronic SMB Plugs, Sockets and Connectors

BKL Brand: BKL

These gold-plated SMB plugs, sockets and connectors are used in the frequency range up to 4 GHz. Inserted rather than screwed, these connectors are used mainly for internal device connections.

  • PCB mounting: 90°
  • Soldered connection
Description Image Product Buy Pricing (Ex VAT) Type Mounting Direction Body Style Cable Type Connection Type Connector Type Frequency Contact Gender Mounting method Plug / Socket Mounting Type Impedance

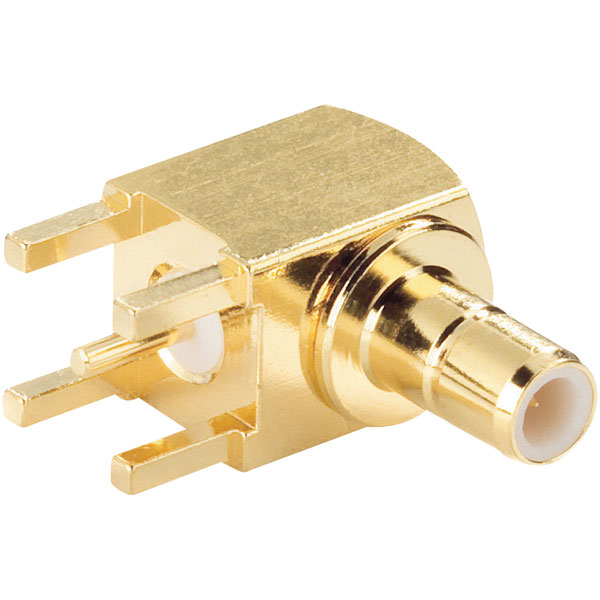

BKL 0411030 SMB Installation Socket 50 Ohm 90° PCB Mounting
BKL 0411030 SMB Installation Socket 50 Ohm 90° PCB Mounting
Standard range
Order code: 50-1630
MPN: 0411030

12 in stock, despatched in 4 working days
2+ £3.64
Price per unit Ex VAT 		Right angle Right angle N/A (PCB Mount) SMB Female Female 50O
BKL 411000 SMB Plug-in Socket for Crimping 50 Ohm Connector
BKL 411000 SMB Plug-in Socket for Crimping 50 Ohm Connector
Standard range
Order code: 50-1634
MPN: 411000

26 in stock, despatched in 4 working days
1+ £4.25
10+ £4.04
50+ £3.74
Price per unit Ex VAT 		SMB Plug in socket Inline SMB 4GHz Crimp Socket Cable Mount 50O
Order code50-163050-163250-1634
Cable diameter2.6mm2.6mm2.6mm
ConnectionSolderSolderCrimp
Contact resistance10MΩ10MΩ10MΩ
Frequency range0 to 4GHz0 to 4GHz0 to 4GHz
Impedance50Ω50Ω50Ω
Insulation resistance500MΩ500MΩ500MΩ
Plug constructionSocket, PCB, AngledPlug, Cable MountPlug, Cable Mount
Specification90° PCB mountingConnectorConnector
Manufacturer part no.411030411015411000
