BKL 10120525 Male Header Double Row 2.54mm Pitch Straight 2 x 20-pole 5.8mm Pins

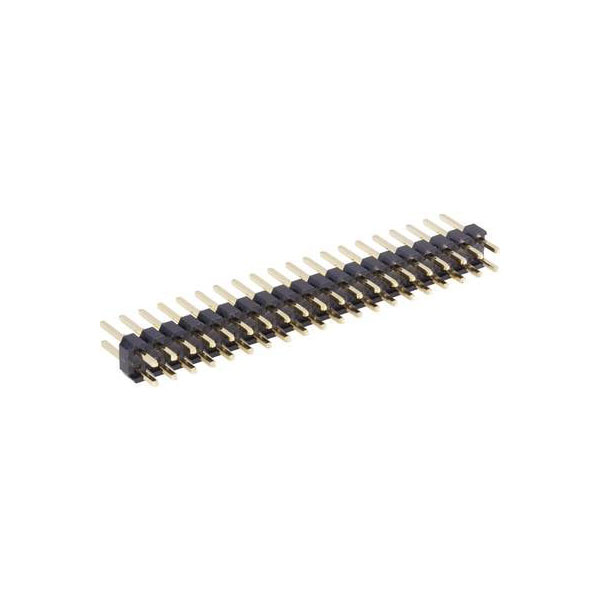

Image Representative of Range

BKL 10120525 Male Header Double Row 2.54mm Pitch Straight 2 x 20-pole 5.8mm Pins

BKL
Order Code:

54-5042

Brand: BKL MPN: 10120525 EAN-13: 4011376702265
Qty Unit Price (Ex VAT)
10+ £0.470
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
409 available to back orderBack-order availability date - 10/01/2026

BKL Electronics 10120525 These pin headers are suitable for use with female headers, housings or jumpers. For direct soldering on PCBs. Gold plated contacts. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.


  • Gold plated
  • Contact material: Gold plated
  • Contact resistance: Max 20 mΩ
  • Content: 1 pc
  • Dimensions, height: 11.6mm
  • Dimensions, length: 50.8mm
  • Dimensions, width: 5.0mm
  • Grid pitch: 2.54mm
  • Manufacturer part No.: 10120525
  • Nominal current: 3A
Type Header
Number of Positions 20
Pitch 2.54mm
Number of Rows 2
Mouning Orientation Straight
Connection Through hole
