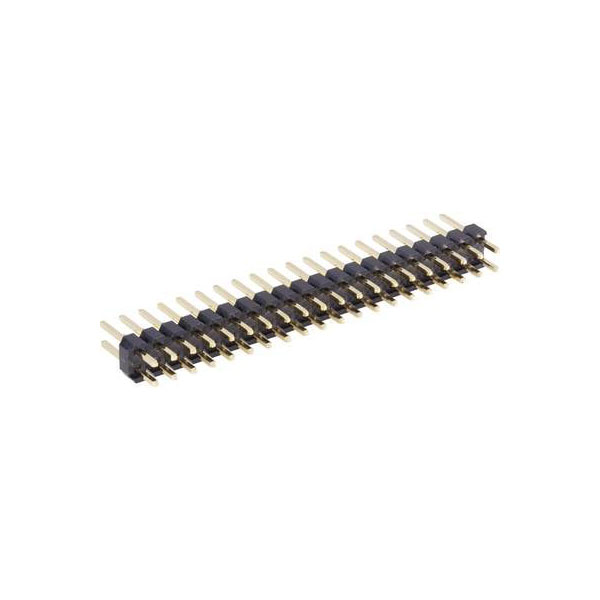

BKL 10120523 Male Header Double Row 2.54mm Pitch Straight 2 x 17-pole 5.8mm Pins

BKL 10120523 Male Header Double Row 2.54mm Pitch Straight 2 x 17-pole 5.8mm Pins

BKL
Order Code:

54-5041

Brand: BKL MPN: 10120523 EAN-13: 4011376702258

Discontinued


BKL Electronics 10120523 These pin headers are suitable for use with female headers, housings or jumpers. For direct soldering on PCBs. Gold plated contacts. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.


  • Gold plated
  • Contact material: Gold plated
  • Contact resistance: Max 20 mΩ
  • Content: 1 pc
  • Dimensions, height: 11.6mm
  • Dimensions, length: 43.18mm
  • Dimensions, width: 5.0mm
  • Grid pitch: 2.54mm
  • Manufacturer part No.: 10120523
  • Nominal current: 3A
