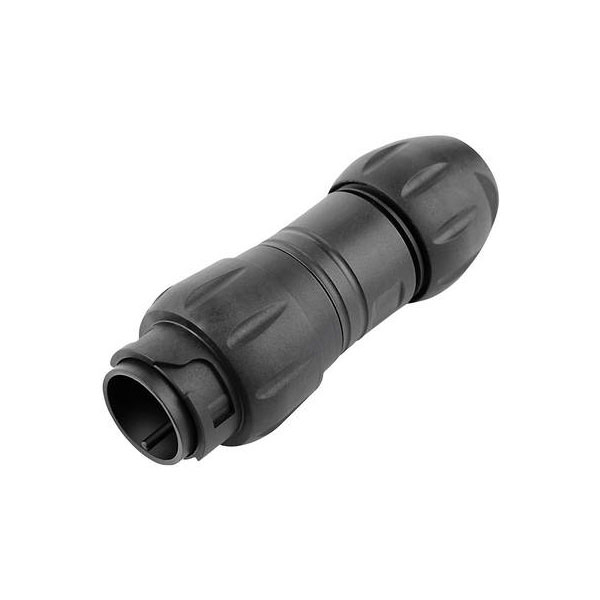

Binder 99650100008 HEC Connector Straight Plug 8-Pin Harsh Environments

The binder 99 6501 000 08 is a bullet connector manufactured by binder. This plug is straight, features 8 pins, and belongs to the HEC series of round connectors. Typically, it is used for reliable and robust connections in outdoor or industrial applications.

Type	Plug, straight
Number of Contacts	8
Connector Size	18.5 mm dia
Gender	Plug
Cable Ø (max.)	4mm
Cable Ø range	3 - 4mm
Cable Ø up to	3mm
Case Material	PA (UL 94 V-0)
Colour	Black
Connection	Crimp
Connection Angle	180°
Cross-section range	0.25 mm² (max)
Current Rating	3A
IP Rating	IP68, IP69K
Length	94mm
max. cross section	0.25mm²
Maximum Temperature	+85°C
Min. temperature	-25°C
Nominal Voltage	125V
Number of pins	8
Series	HEC
Termination	Bayonet
