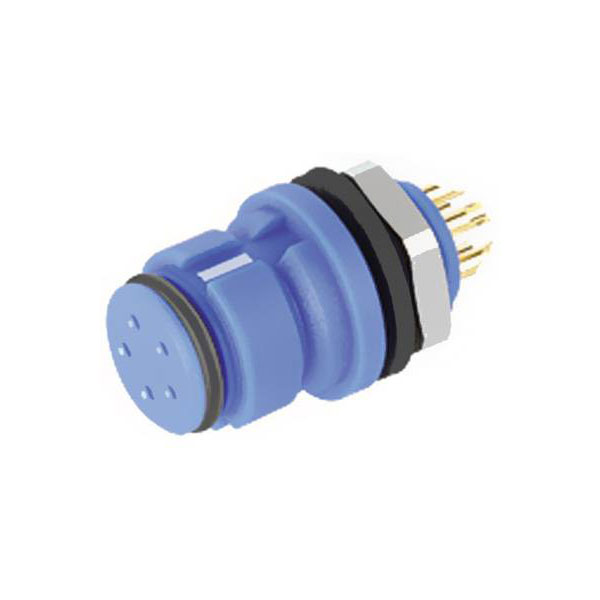

Binder 99 9228 060 08 Female Panel Mnt 8 Pin Blue Code with Termination

An 8-pin blue female subminiature panel mount snap-in connector with solder termination.

• Number of poles: 8
• Wire gauge (mm): 0,25 mm²
• Wire gauge (AWG): 24
• Cable outlet: 3 - 5 mm
• Degree of protection: IP 67
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -25 °C
• Rated voltage: 63 V
• Rated impulse voltage: 800 V
• Pollution degree: 2
• Overvoltage category: II
• Material group: II
• Rated current (40°C): 1 A
• Volume resistivity: ≤ 3 mΩ
• Material of contact: CuSn (bronze)
• Contact plating: Au (gold)
• Material of contact body: PA (UL 94 V-0)
• Material of housing: PA (UL 94 V-0)

Type	Panel Mount Female
Number of Contacts	8
Connector Size	18.5 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Gold
Current Rating	1A
IP Rating	IP67
Maximum Temperature	+85°C
Min. temperature	-40°C
Mounting Type	Panel
Nominal Voltage	63V
Number of pins	8
