Image Representative of Range

Binder 99-9214-00-05 Female Cable Mnt 5 Pin Black Code with Solder Termination

MPN: 99-9214-00-05
Brand: Binder
Order Code: 55-1021
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (9)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£9.08
10+	£8.87
50+	£8.53

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 19 in stock

Product Details
Product Range
Data Sheets
Quick Quote

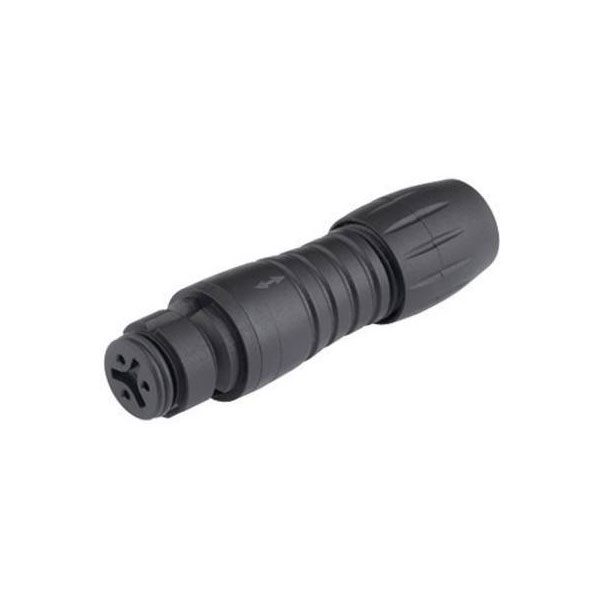

A 5-pin black female subminiature cable mount snap-in connector with solder termination.

Number of poles: 5
Connector locking system: Snap-in locking
Termination: solder
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Cable outlet: 3 - 5 mm
Degree of protection: IP 67
Mechanical operation: >500 mating cycles
Upper temperature: +85 °C
Lower temperature: -40 °C
Rated voltage: 63 V
Rated impulse voltage: 800 V
Pollution degree: 2
Overvoltage category: II
Material group: II
Rated current (40°C): 2 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA (UL 94 V-0)
Material of housing: PA (UL 94 V-0)

Type	Snap-in Subminiature, Cable Mount
Number of Contacts	5
Connector Size	18.5 mm dia
Gender	Female
Colour	Black/Blue
Contact Finish	Gold plated
Contact Termination	Solder
Pin/Socket	Socket
