Binder 99 9210 450 04 Micro DIN Connector Straight 4 Pins 1pc

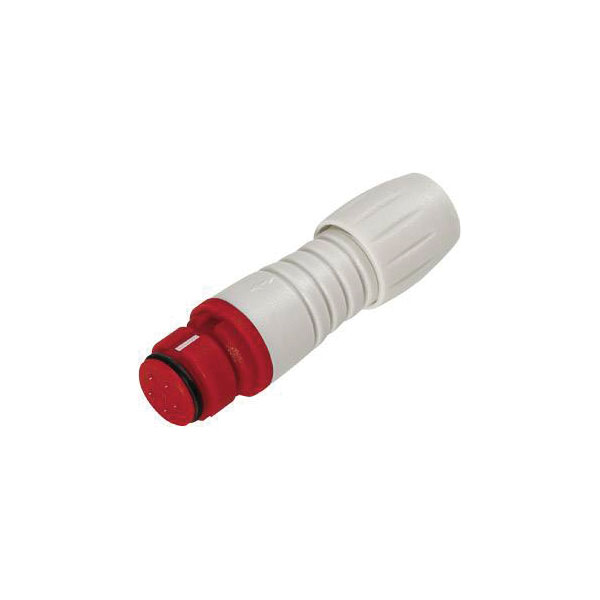

Image Representative of Range

Binder 99 9210 450 04 Micro DIN Connector Straight 4 Pins 1pc

Binder
Standard range
Order Code:

01-4808

Brand: Binder MPN: 99 9210 450 04
Qty Unit Price (Ex VAT)
1+ £6.27
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

Manufactured by binder, the Micro DIN connector 99 9210 450 04 is a straight connector featuring four pins. It is commonly used in electronics applications requiring compact and reliable connections. The connector is ideal for use in industrial automation and control systems.
AWG 24
Cable Ø (max.) 5mm
Cable Ø range 3 - 5 mm
Cable Ø up to 3mm
Case material PA (UL 94 V-0)
Connection Soldering
Connection angle 180°
Connector type Connector, straight
Contact material Bronze, gold plated
Cross-section range 0.25 mm² (max)
Factory colour Red
IP rating IP67
Leading contact (PE) No
Manufacturer part # 99 9210 450 04
max. cross section 0.25mm²
Max. temperature +85°C
Min. temperature -25°C
Misc Attribute Binder
Nominal current 2.50A
Nominal current - rounded value 2.5A
Nominal voltage 125V
Number of pins 4
Total no. of pins 4
Type Micro DIN connector
