Binder 99-5109-15-04 Male Cable Mount Silver Plated 4 Pin with 4-6mm Outlet

Image Representative of Range

Binder 99-5109-15-04 Male Cable Mount Silver Plated 4 Pin with 4-6mm Outlet

Binder
Order Code:

55-0969

Brand: Binder MPN: 99-5109-15-04 EAN-13: 2050000420832
Qty Unit Price (Ex VAT)
1+ £14.90
10+ £11.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
30 in stock, despatched in 4 working days

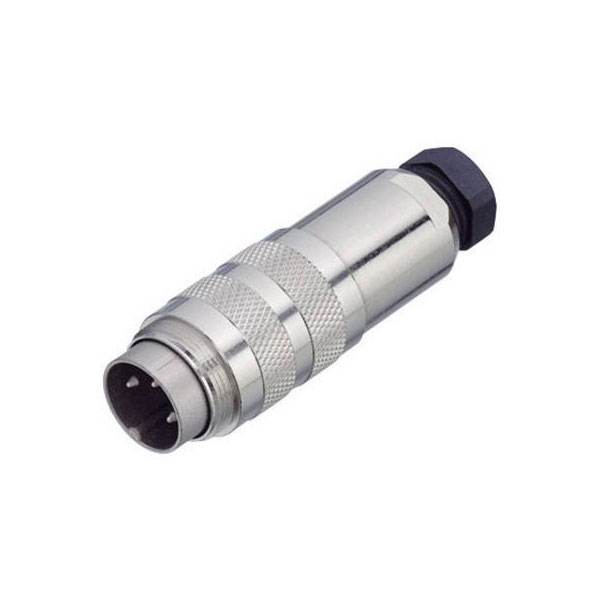

A silver plated 4-pin male DIN cable mount connector with a 4 to 6mm outlet.
  • Number of poles: 4
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,75 mm²
  • Wire gauge (AWG): 20
  • Cable outlet: 4 - 6 mm
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +95 °C
  • Lower temperature: -40 °C
  • Rated voltage: 250 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 1
  • Overvoltage category: I
  • Material group: III
  • Rated current (40°C): 6 A
  • Volume resistivity: ≤ 5 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Ag (silver)
  • Material of contact body: PBT (UL 94 V-0)
  • Material of housing: CUZn (brass nickel plated)
Number of Contacts 4
Gender Male
Cable Diameter 4 to 6mm
Contact Material Brass
Contact Plating Silver
Current Rating 6A
IP Rating IP67
Mounting Type Cable
Nominal Voltage 250V
Termination Solder
