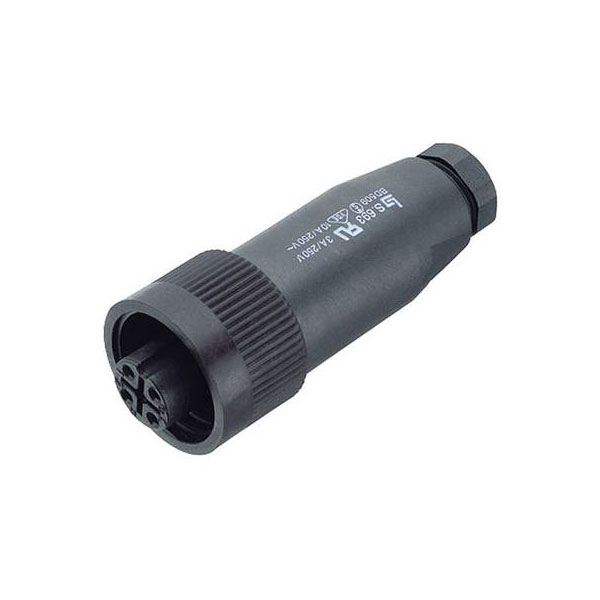

Binder 99-4218-00-07 F 6-8mm Cable Mnt 6+PE Pin with Screw Termination

A 6+PE pin IP67 panel mount VDE power connector with a 6 to 8mm outlet and screw clamp termination.

• Number of poles: 7
• Connector locking system: Screw
• Termination: screw
• Wire gauge (mm): 0,34-1,5 mm²
• Wire gauge (AWG): 22-16
• Cable outlet: 6 - 8 mm
• Degree of protection: IP 67
• Mechanical operation: >500 mating cycles
• Upper temperature: +100 °C
• Lower temperature: -40 °C
• Rated voltage: 250 V
• Rated impulse voltage: 4000 V
• Pollution degree: 3
• Overvoltage category: III
• Material group: III
• Volume resistivity: ≤ 5 mΩ
• Material of contact: CuSn (bronze), CuZn (brass)
• Contact plating: Ag (silver)
• Material of contact body: PBT (UL 94 V-0)
• Material of housing: PBT (UL 94 V 0)

Type	Bullet connector
Number of Contacts	6 + PE
Connector Size	18.5 mm dia
Gender	Female
Cable Diameter	6 to 8mm
Contact Material	CuSn
Contact Plating	Silver
IP Rating	IP67
Mounting Type	Cable
Nominal Voltage	250V
Number of pins	6
Termination	Screw
