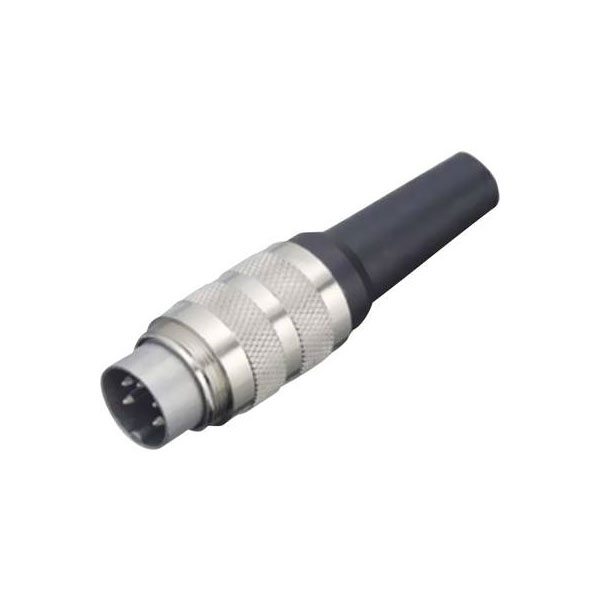

Binder 99-2005-00-03 Male Cable Mount Miniature 3 Pin DIN with 4-6mm Outlet

A 3-pin shieldable male M16 cable mount miniature connector with a 4 to 6mm outlet.

• Number of poles: 3
• Connector locking system: Screw
• Termination: solder
• Wire gauge (mm): 0,75 mm²
• Wire gauge (AWG): 20
• Cable outlet: 4 - 6 mm
• Degree of protection: IP 40
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -40 °C
• Rated voltage: 250 V
• Rated impulse voltage: 1500 V
• Pollution degree: 1
• Overvoltage category: I
• Material group: III
• Rated current (40°C): 7 A
• Volume resistivity: ≤ 5 mΩ
• Material of contact: CuZn (brass)
• Contact plating: Ag (silver)
• Material of contact body: PBT (UL 94 V-0)
• Material of housing: CUZn (brass nickel plated)

Mounting Type	Cable Mount
Plug / Socket	Plug
No. of Contacts	3
Cable Diameter	4 to 6mm
Connector Body Material	Brass
Contact Material	Brass
Contact Plating	Silver
Gender	Male
IP Rating	IP40
Maximum Temperature	+90°C
Min. temperature	-40°C
Nominal Current	7A
Nominal Voltage	250V
Number of pins	3
Number of Ways	3
Termination	Solder
Type	Bullet connector
