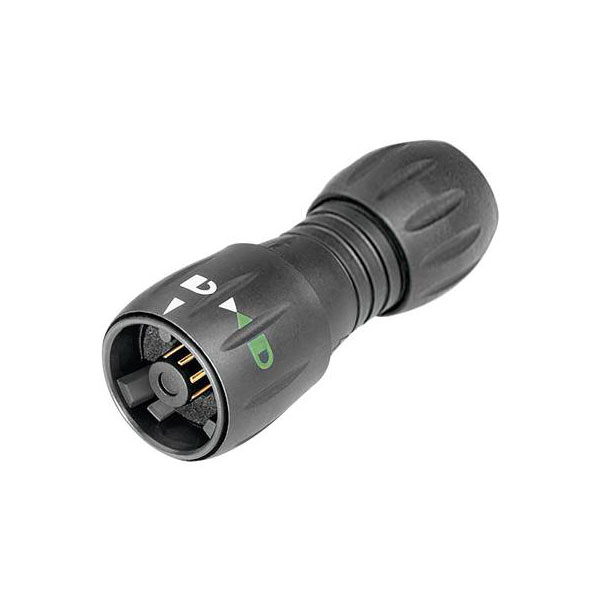

Binder 99-0771-002-08 Male 6-8mm 8 Pin with Solder Terminal

A male 8-pin IP67 black and silver miniature bayonet connector with 6 to 8mm outlet and solder terminal.

• Number of poles: 8
• Termination: solder
• Wire gauge (mm): 0,25 mm²
• Cable outlet: 6 - 8 mm
• Degree of protection: IP 67
• Upper temperature: +85 °C
• Lower temperature: -25 °C
• Rated voltage: 175 V
• Rated impulse voltage: 1750 V
• Pollution degree: 2
• Overvoltage category: II
• Material group: II
• Rated current (40°C): 2 A
• Volume resistivity: ≤ 15 mΩ
• Material of contact body: PA (UL 94 HB)
• Material of housing: PA (UL 94 V-0)

Type	Cable Plug
Number of Contacts	8
Connector Size	18.5 mm dia
Gender	Male
Cable Diameter	6 to 8mm
Current Rating	2A
IP Rating	IP67
Maximum Temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	175V
Number of pins	8
Termination	Solder
