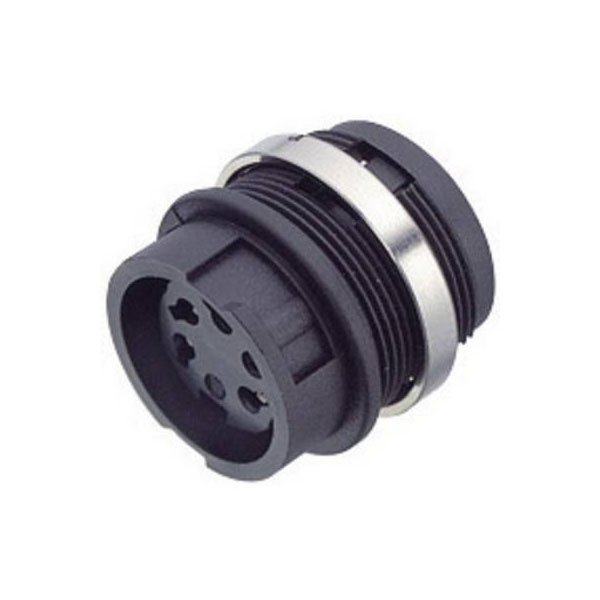

Binder 99-0648-00-08 Female Panel Mnt 8 Pin with Solder Termination

A 8-pin miniature panel mount female bayonet connector with solder termination.

• Number of poles: 8
• Connector locking system: Bayonet-locking
• Termination: solder
• Wire gauge (mm): 0,75 mm²
• Wire gauge (AWG): 20
• Degree of protection: IP 40
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -40 °C
• Rated voltage: 60 V
• Rated impulse voltage: 500 V
• Pollution degree: 1
• Overvoltage category: I
• Material group: III
• Rated current (40°C): 5 A
• Volume resistivity: ≤ 5 mΩ
• Material of contact: CuSn (bronze)
• Contact plating: Ag (silver)
• Material of contact body: PBT (UL 94 V-0)
• Material of housing: PA (UL 94 V-0)

Type	Panel Mount Female
Number of Contacts	8
Connector Size	18.5 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Silver
Current Rating	5A
IP Rating	IP40
Maximum Temperature	+55°C
Min. temperature	-20°C
Mounting Type	Panel
Nominal Voltage	60V
Number of pins	8
Termination	Solder
