Binder 99-0623-00-07 Male Panel Mnt 7 Pin with Solder Termination

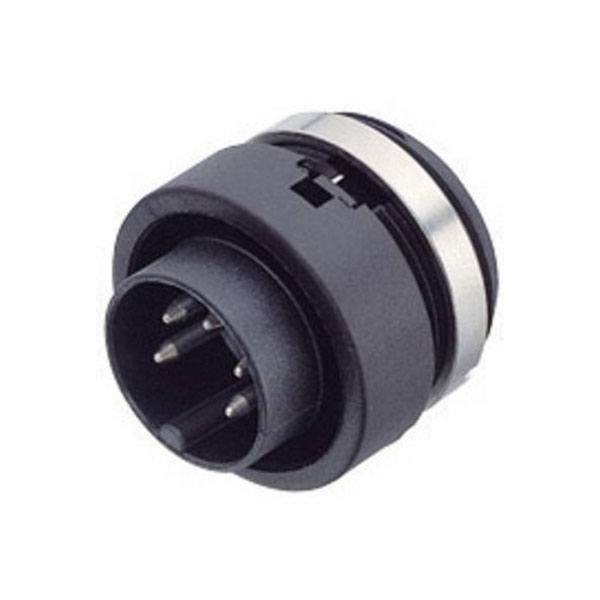

Image Representative of Range

Binder 99-0623-00-07 Male Panel Mnt 7 Pin with Solder Termination

Binder
Order Code:

55-1085

Brand: Binder MPN: 99-0623-00-07 EAN-13: 2050000421600
Qty Unit Price (Ex VAT)
1+ £6.14
10+ £4.84
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

A 7-pin miniature panel mount male bayonet connector with solder termination.
  • Number of poles: 7
  • Connector locking system: Bayonet-locking
  • Termination: solder
  • Wire gauge (mm): 0,75 mm²
  • Wire gauge (AWG): 20
  • Degree of protection: IP 40
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 800 V
  • Pollution degree: 1
  • Overvoltage category: I
  • Material group: III
  • Rated current (40°C): 5 A
  • Volume resistivity: ≤ 5 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Ag (silver)
  • Material of contact body: PBT (UL 94 V-0)
  • Material of housing: PA (UL 94 V-0)
Number of Contacts 7
Gender Male
Contact Material Brass
Contact Plating Silver
Current Rating 5A
IP Rating IP40
Mounting Type Panel
Nominal Voltage 125V
Termination Solder
