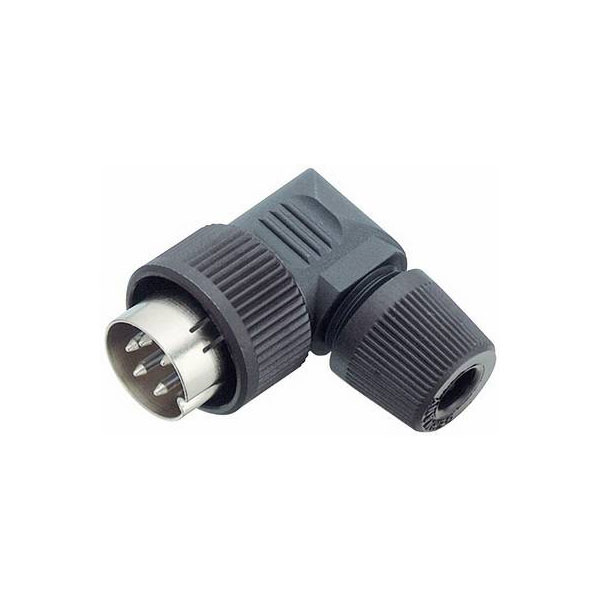

Binder 99-0613-70-05 Male 4-6mm Angled Cable Mnt 5 Pin with Solder Termination

MPN: 99-0613-70-05
Brand: Binder
EAN-13: 2050001612724
Order Code: 55-1036

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£10.73	£10.65

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 4 in stock

Number of poles: 5
Connector locking system: Bayonet-locking
Termination: solder
Wire gauge (mm): 0,75 mm²
Wire gauge (AWG): 20
Cable outlet: 4 - 6 mm
Degree of protection: IP 40
Mechanical operation: >500 mating cycles
Upper temperature: +85 °C
Lower temperature: -40 °C
Rated voltage: 250 V
Rated impulse voltage: 1500 V
Pollution degree: 1
Overvoltage category: I
Material group: III
Rated current (40°C): 6 A
Volume resistivity: ≤ 5 mΩ
Material of contact: CuZn (brass)
Contact plating: Ag (silver)
Material of contact body: PBT (UL 94 V-0)
Material of housing: PA (UL 94 V-0)

Type	Cable Plug
Number of Contacts	5
Connector Size	18.5 mm dia
Gender	Male
Colour	Black
IP Rating	IP40
Maximum Temperature	+85°C
Min. temperature	-40°C
Number of pins	5
