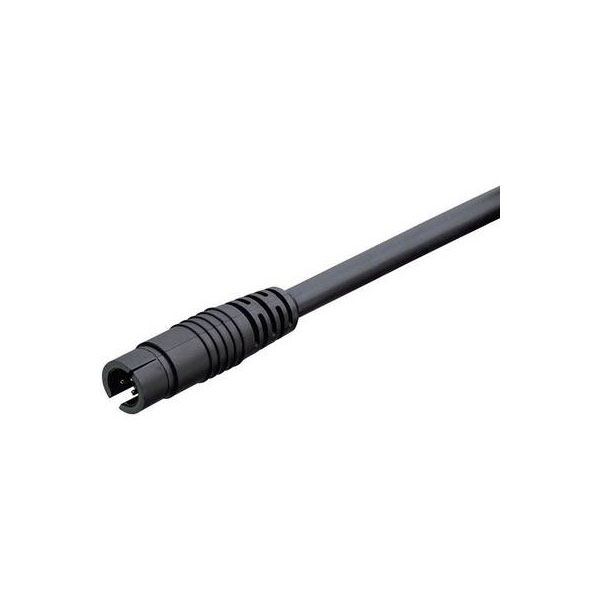

Binder 79-9001-12-03 Male 3 Pin Cable Mount with Moulded Terminal and 2m cable

MPN: 79-9001-12-03
Brand: Binder
EAN-13: 2050000421686
Order Code: 55-1102

RoHS Compliant
Free UK shipping available

View Full Product Range (4)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£12.37

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 18 in stock

Product Range

Number of poles: 3
Connector locking system: Snap-in locking
Termination: moulded on cable
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Cable lenth: 2 m
Degree of protection: IP 40
Mechanical operation: >100 mating cycles
Upper temperature: +70 °C
Lower temperature: -20 °C
Rated voltage: 60 V
Rated impulse voltage: 800 V
Pollution degree: 1
Overvoltage category: II
Material group: III
Rated current (40°C): 3 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuZn (brass)
Contact plating: Au (gold)
Material of contact body: PA
Material of housing: PUR

Cable data

material housing: PVC
insulation single lead: PVC
single lead structure: 32 x 0,10 mm
cable sheath Ø: 4.5
conductor resistance: 80Ω/Km (20°C)
temperature range cable movable c from / temperature range cable movable c to: -5 / 70
temperature range cable fixed c from / temperature range cable fixed c to: -25 / 70
bending radius cable fixed: 22 mm
bending radius cable movable: 45 mm
cable diameter: 4.5
