Binder 690 Series Cable Mount Power Bayonet Connectors

Binder Brand: Binder
A range of cable mount power bayonet connectors with solder termination.
  • Cable outlet: 5 - 8 mm
  • Connector locking system: Bayonet-locking
  • Degree of protection: IP 40
  • Lower temperature: -40 °C
  • Material group: III
  • Material of contact body: PET (UL 94 V 0)
  • Material of housing: Gd-Al (eloxadized)
  • Mechanical operation: >500 mating cycles
  • Overvoltage category: II
  • Pollution degree: 1
  • Rated impulse voltage: 2500 V
  • Rated voltage: 250 V
  • Termination: solder
  • Upper temperature: +85 °C
Description Image Product Buy Pricing (Ex VAT) Number of Contacts Current Rating Gender Contact Material IP Rating Cable Diameter Contact Plating Mounting Type Nominal Voltage Termination

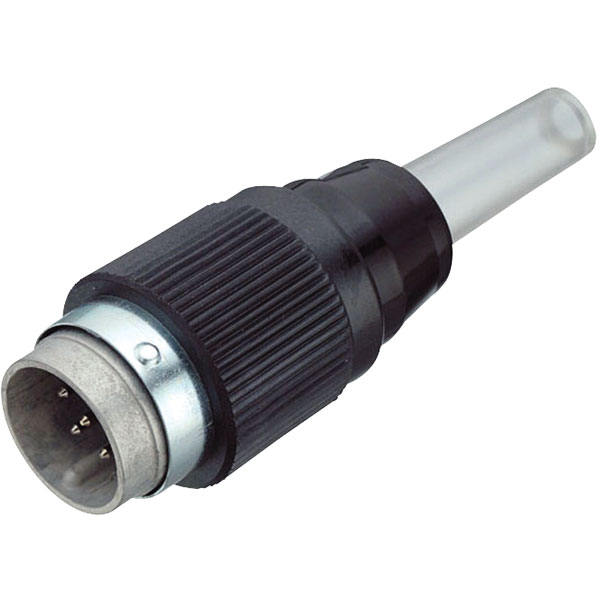

Binder 09-0055-00-03 Male 5-8mm Cable Mnt 3 Pin with Solder Termination
Binder 09-0055-00-03 Male 5-8mm Cable Mnt 3 Pin with Solder Termination
Standard range
Order code: 55-1340
MPN: 09-0055-00-03

80 available to back orderBack-order availability date - 11/01/2026
1+ £20.88
10+ £17.46
50+ £15.74
Price per unit Ex VAT 		3 10A Male Brass IP40 5 to 8mm Silver Cable 250V Solder
Binder 09-0064-00-07 Female 5-8mm Cable Mnt 7 Pin with Solder Termination
Binder 09-0064-00-07 Female 5-8mm Cable Mnt 7 Pin with Solder Termination
Standard range
Order code: 55-1345
MPN: 09-0064-00-07

7 available to back orderBack-order availability date - 11/01/2026
1+ £25.24
10+ £23.57
50+ £23.25
Price per unit Ex VAT 		7 5A Female CuSn IP40 5 to 8mm Silver Cable 250V Solder
Order codeMftrs Part No.
55-134009-0055-00-03
55-134509-0064-00-07
