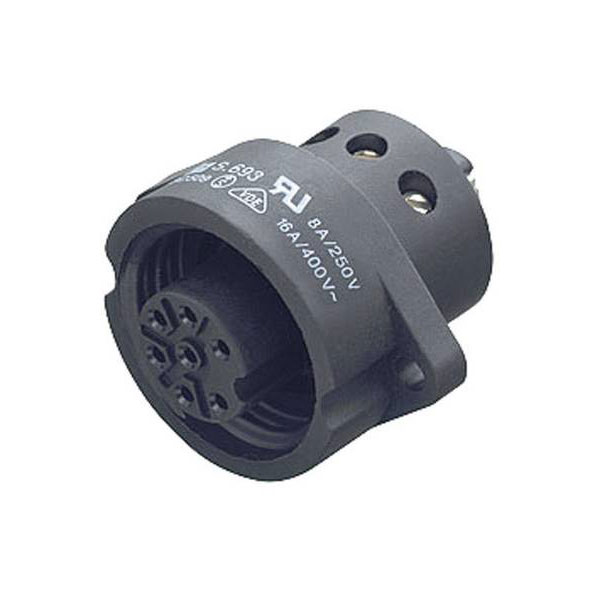

Image Representative of Range

Binder 09-4228-00-07 F Panel Mnt 6+PE Pin with Solder Termination

MPN: 09-4228-00-07
Brand: Binder
EAN-13: 2050000875663
Order Code: 55-1394
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (5)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£10.12	£8.15
10+	£9.47	£7.62
50+	£9.36	£7.52

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

35 in stock, despatched in 4 working days

Product Details
Product Range
Quick Quote

A 6+PE pin IP67 panel mount VDE power connector with solder termination.

Number of poles: 7
Connector locking system: Screw
Termination: solder
Wire gauge (mm): 0,75 mm²
Wire gauge (AWG): 20
Degree of protection: IP 67
Mechanical operation: >500 mating cycles
Upper temperature: +100 °C
Lower temperature: -40 °C
Rated voltage: 250 V
Rated impulse voltage: 4000 V
Pollution degree: 3
Overvoltage category: III
Material group: III
Volume resistivity: ≤ 5 mΩ
Material of contact: CuSn (bronze)
Contact plating: Ag (silver)
Material of contact body: PBT

Number of Contacts	6 + PE
Connector Size	20 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Silver
IP Rating	IP67
Mounting Type	Panel
Nominal Voltage	250V
Termination	Solder
