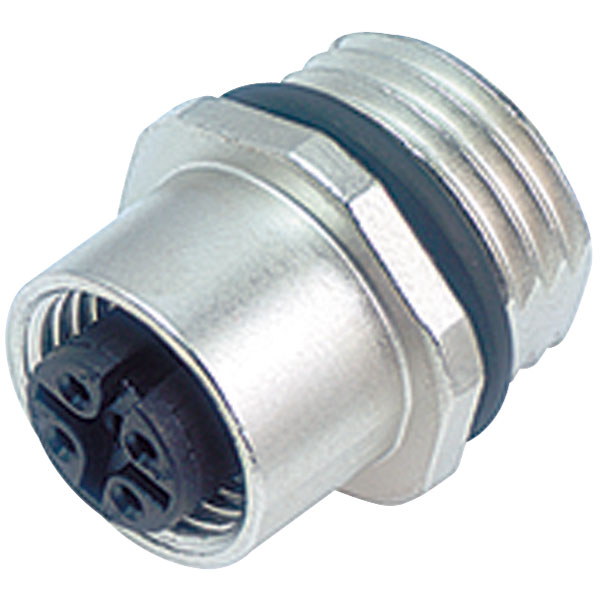

Binder 09-3432-77-04 Female 4 Pin with Solder and PG9 Fixing Thread

MPN: 09-3432-77-04
Brand: Binder
EAN-13: 2050000990946
Order Code: 55-0398
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£10.19

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 9 in stock

Product Details
Product Range
Quick Quote

A female 4-pin screw connector with PG9 fixing thread and solder termination.

Number of poles: 4
Connector locking system: Screw
Termination: solder
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Degree of protection: IP 68
Mechanical operation: >100 mating cycles
Upper temperature: +85 °C
Lower temperature: -40 °C
Rated voltage: 250 V
Rated impulse voltage: 2500 V
Pollution degree: 3
Overvoltage category: II
Material group: II
Rated current (40°C): 4 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA
Material of housing: zinc diecasting, nickel plated

Type	Sensor/actuator built-in connector
Number of Contacts	4
Connector Size	20 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Gold
Current Rating	4A
IP Rating	IP68
Maximum Temperature	+85°C
Min. temperature	-25°C
Nominal Voltage	250V
Termination	Solder
