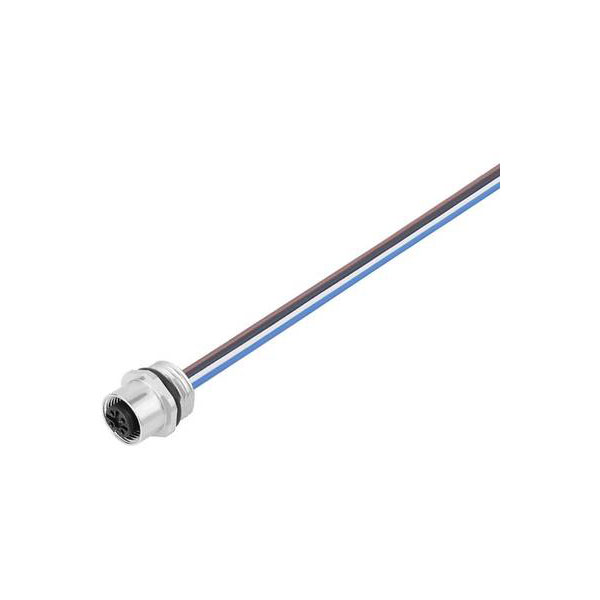

Binder 09-3432-433-04 Female 4 Pin with Single Wires and PG9 Fixing Thread

A female 4-pin IP67 silver power panel mount screw connector with single wire terminal and PG9 fixing thread.

• Number of poles: 4
• Termination: wires
• Wire gauge (AWG): 18
• Degree of protection: IP 67
• Mechanical operation: >100 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -40 °C
• Rated voltage: 250 V
• Rated impulse voltage: 2500 V
• Pollution degree: 3
• Overvoltage category: II
• Material group: II
• Rated current (40°C): 8 A
• Volume resistivity: ≤ 3 mΩ
• Material of contact body: PA
• Material of housing: zinc diecasting, nickel plated

Type	Panel Mount Female
Number of Contacts	4
Connector Size	20 mm dia
Gender	Female
Contact Plating	Nickel
Current Rating	8A
IP Rating	IP67
Maximum Temperature	+80°C
Min. temperature	-40°C
Nominal Voltage	250V
Number of pins	4
