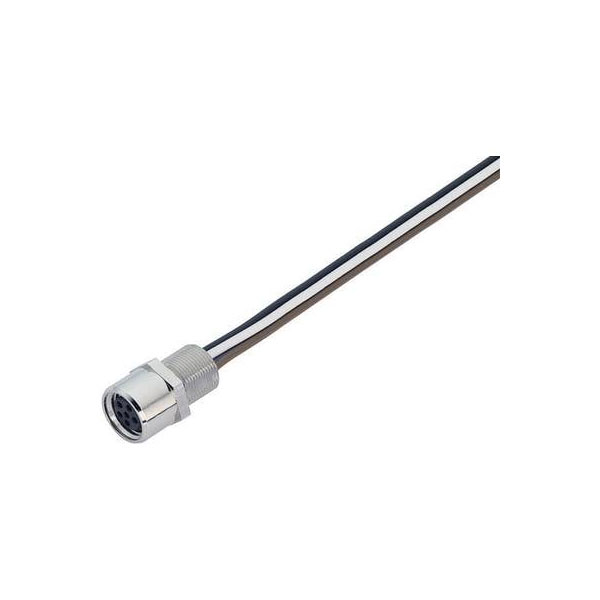

Image Representative of Range

Binder 09-3412-00-03 Female 3 Pin with Single Wires Terminal

MPN: 09-3412-00-03
Brand: Binder
EAN-13: 2050000992506
Order Code: 55-1427
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (2)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£9.49	£9.44
10+	£8.74	£8.69
50+	£8.19	£8.15

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Available to back orderBack order, lead time 3 weeks

Product Details
Product Range
Data Sheets

A female 3-pin IP67 silver sensor M8 connector with single wire terminal.

Number of poles: 3
Connector locking system: Screw
Termination: Single leads 0.25
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Degree of protection: IP 67
Mechanical operation: >100 mating cycles
Upper temperature: +85 °C
Lower temperature: -40 °C
Rated voltage: 60 V
Rated impulse voltage: 800 V
Pollution degree: 3
Overvoltage category: II
Material group: II
Rated current (40°C): 4 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA
Material of housing: CUZn (brass nickel plated)

Type	Sensor/actuator built-in connector
Number of Contacts	3
Connector Size	M8
Gender	Female
Contact Material	CuSn
Contact Plating	Gold
Current Rating	4A
IP Rating	IP67
Maximum Temperature	+85°C
Min. temperature	-25°C
Nominal Voltage	60V
