Binder 09-0324-00-06 Female Panel Mount Miniature 6 Pin DIN with Outlet

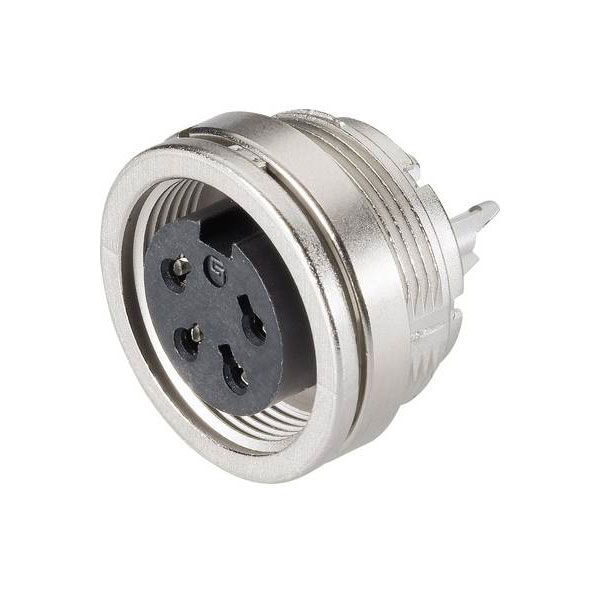

Image Representative of Range

Binder 09-0324-00-06 Female Panel Mount Miniature 6 Pin DIN with Outlet

Binder
Order Code:

55-0220

Brand: Binder MPN: 09-0324-00-06 EAN-13: 4016138099836
Qty Unit Price (Ex VAT)
1+ £5.97
10+ £5.65
50+ £5.60
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
51 available to back orderBack-order availability date - 15/01/2026

A 6-pin female M16 panel mount miniature connector.
  • Connector locking system: Screw
  • Degree of protection: IP 40
  • Lower temperature: -40 °C
  • Material group: III
  • Material of contact body: PBT (UL 94 V-0)
  • Material of housing: zinc diecasting, nickel plated
  • Mechanical operation: >500 mating cycles
  • Overvoltage category: I
  • Pollution degree: 1
  • Termination: solder
  • Upper temperature: +85 °C
Number of Contacts 6
Current Rating 5A
Gender Female
IP Rating IP40
Contact Material CuSn
Contact Plating Silver
Mounting Type Panel
Nominal Voltage 250V
Termination Solder
