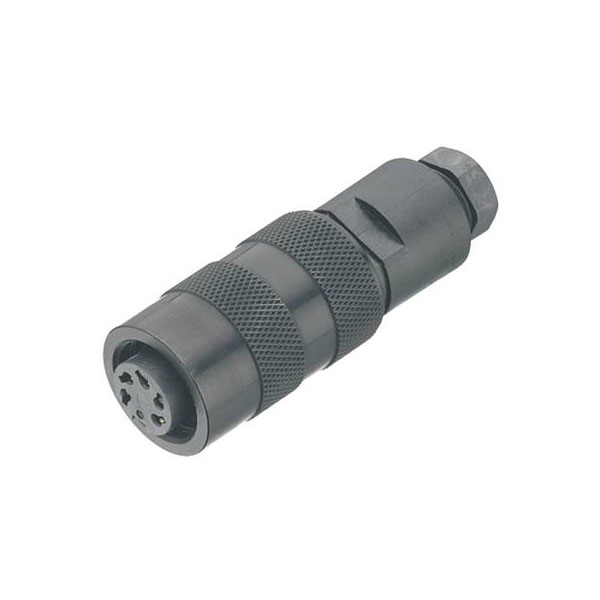

Binder 09-0172-25-08 Female 4-6mm 8 Pin Cable Mount Screw with Solder Terminal

Image Representative of Range

Binder 09-0172-25-08 Female 4-6mm 8 Pin Cable Mount Screw with Solder Terminal

Binder
MPN
09-0172-25-08
Brand
Binder
EAN-13
2050001367884
Order Code
55-0564
View Full Product Range (3)
Qty Unit Price (Ex VAT)
1+ £25.57
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 weeks


  • Number of poles: 8
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,75 mm²
  • Wire gauge (AWG): 20
  • Cable outlet: 4 - 6 mm
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +95 °C
  • Lower temperature: -40 °C
  • Rated voltage: 60 V
  • Rated impulse voltage: 500 V
  • Pollution degree: 1
  • Overvoltage category: I
  • Material group: III
  • Rated current (40°C): 5 A
  • Volume resistivity: ≤ 5 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Ag (silver)
  • Material of contact body: PBT (UL 94 V-0)
  • Material of housing: PA (UL 94 HB)
Type Cable Plug
Number of Contacts 8
Connector Size 20 mm dia
Gender Female
IP Rating IP67
Number of pins 8
