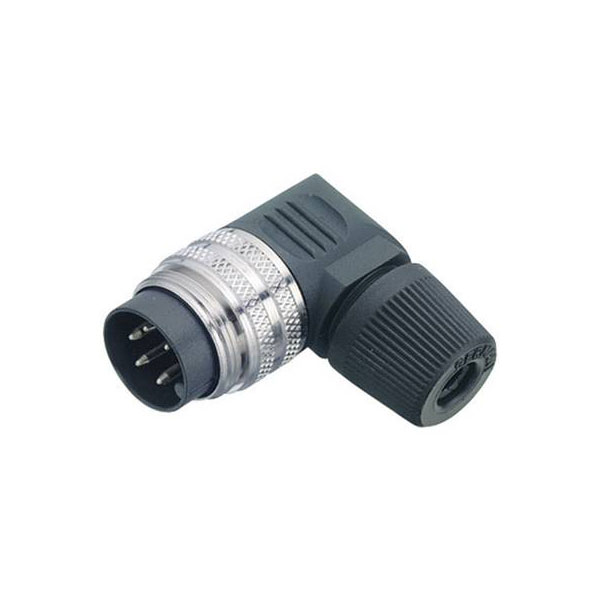

Binder 09-0137-70-04 Male 4-6mm Angled Cable Mnt 4 Pin with Solder Termination

A 4-pin angled miniature cable mount M16 male screw connector with solder termination.

• Number of poles: 4
• Connector locking system: Screw
• Termination: solder
• Wire gauge (mm): 0,75 mm²
• Wire gauge (AWG): 20
• Cable outlet: 4 - 6 mm
• Degree of protection: IP 40
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -40 °C
• Rated voltage: 250 V
• Rated impulse voltage: 1500 V
• Pollution degree: 1
• Overvoltage category: I
• Material group: III
• Rated current (40°C): 6 A
• Volume resistivity: ≤ 5 mΩ
• Material of contact: CuZn (brass)
• Contact plating: Ag (silver)
• Material of contact body: PBT (UL 94 V-0)
• Material of housing: PA (UL 94 HB)

Type	Cable Plug
Number of Contacts	4
Connector Size	20 mm dia
Gender	Male
Cable Diameter	4 to 6mm
Contact Material	Brass
Contact Plating	Silver
Current Rating	6A
IP Rating	IP40
Mounting Type	Cable
Nominal Voltage	250V
Termination	Solder
