Binder 09-0105-25-03 Male 4-6mm 3 Pin DIN Cable Mount Screw with Solder Terminal

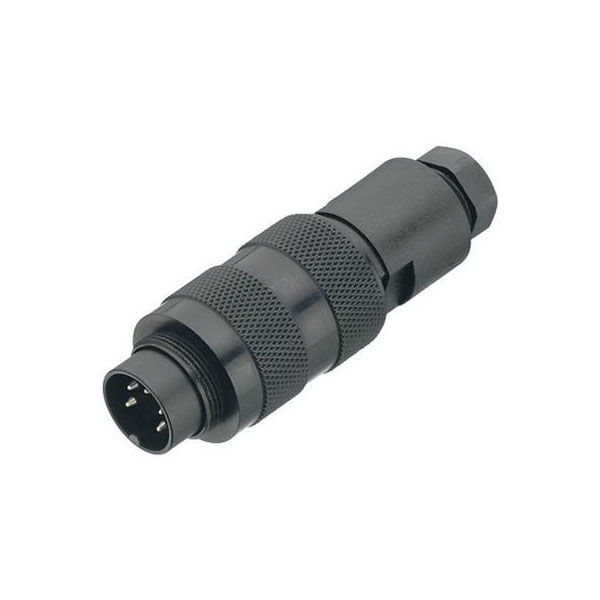

Image Representative of Range

Binder 09-0105-25-03 Male 4-6mm 3 Pin DIN Cable Mount Screw with Solder Terminal

Binder
MPN
09-0105-25-03
Brand
Binder
EAN-13
2050001367778
Order Code
55-0565
View Full Product Range (3)
Qty Unit Price (Ex VAT)
1+ £21.56
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Back order - 7 availableBack-order availability date - 15/07/2026


  • Number of poles: 3
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,75 mm²
  • Wire gauge (AWG): 20
  • Cable outlet: 4 - 6 mm
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +95 °C
  • Lower temperature: -40 °C
  • Rated voltage: 250 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 1
  • Overvoltage category: I
  • Material group: III
  • Rated current (40°C): 7 A
  • Volume resistivity: ≤ 5 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Ag (silver)
  • Material of contact body: PBT (UL 94 V-0)
  • Material of housing: PA (UL 94 HB)
Type Cable Plug
Number of Contacts 3
Connector Size 20 mm dia
Gender Male
IP Rating IP67
Number of pins 3
