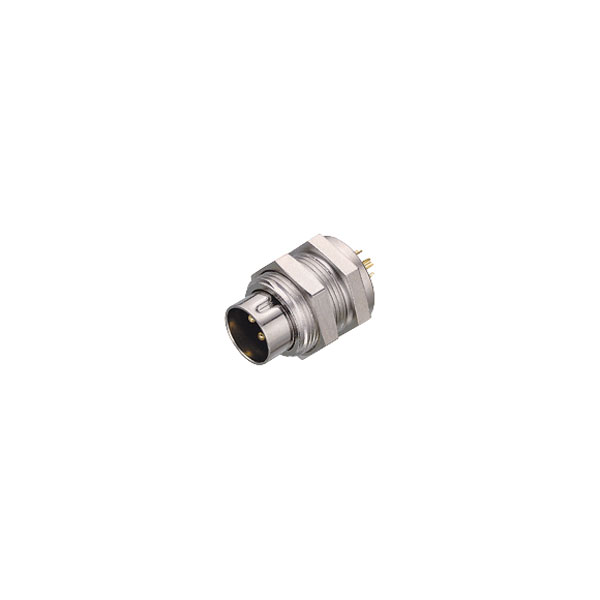

Binder 09-008-1-00-04 Male 4 Pin Panel Mount Screw with Solder Terminal

Subminiature panel mount screw connectors from the Binder 711 Series.

• Number of poles: 4
• Connector locking system: Screw
• Termination: solder
• Wire gauge (mm): 0,25 mm²
• Wire gauge (AWG): 24
• Degree of protection: IP 40
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -40 °C
• Rated voltage: 125 V
• Rated impulse voltage: 1500 V
• Pollution degree: 1
• Overvoltage category: II
• Material group: III
• Rated current (40°C): 3 A
• Volume resistivity: ≤ 3 mΩ
• Material of contact: CuZn (brass)
• Contact plating: Au (gold)
• Material of contact body: PA (UL 94 V-0)
• Material of housing: CUZn (brass nickel plated)
