Bernstein Ltd. 6085171109 Limit Switch 240V AC 10A Lever Momentary IP65

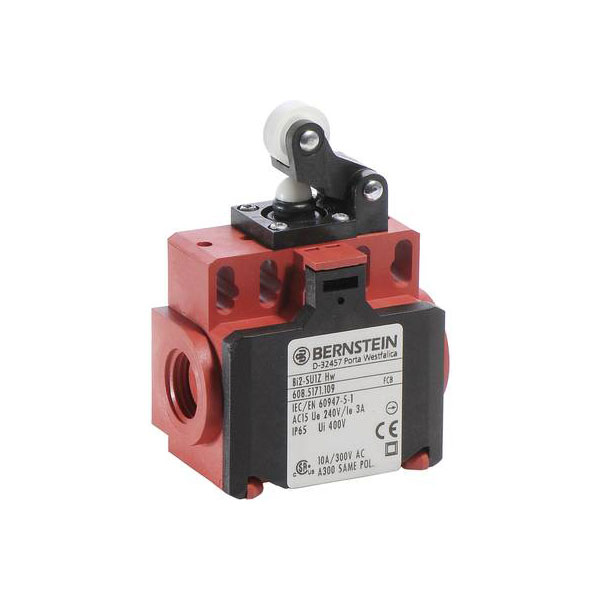

The Bernstein BI2-SU1Z HW is a limit switch designed for 240 V AC and 10 A applications, featuring a lever mechanism and momentary action. It is manufactured by Bernstein AG and provides an IP65 protection rating, ensuring dust-tight and water-resistant performance. This switch is typically used in industrial settings for position sensing and emergency power off functions.

Type	Limit switch
Alignment of the control element	Other
Ambient temperature during operating	-30 - 80°C
Coating housing	N/A
Connection	Screws
Construction type housing	Other
Contact opening	Quick-action switching element
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
Depth	32mm
Diameter sensor	N/Amm
Dim	(W x H x D) 58 x 50 x 32 mm (Casing)
Dim. (add. text)	Casing
Explosion safety category for dust	None
Explosion safety category for gas	None
Forced opening	true
Functions	momentary
Height	50mm
Height of sensor	32mm
Housing Material	Plastic
IP Rating	IP65
Length of sensor	79.25mm
Material	Plastic
Misc Attribute	BI2-SU1Z HW
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of safety auxiliary contacts	1
Operation type	Lever
Output electronic	false
Rated operation current Ie at AC-15, 125 V	N/AA
Rated operation current Ie at AC-15, 230 V	3A
Rated operation current Ie at AC-15, 24 V	N/AA
Rated operation current Ie at DC-13, 125 V	N/AA
Rated operation current Ie at DC-13, 230 V	N/AA
Rated operation current Ie at DC-13, 24 V	N/AA
Suitable for safety functions	true
Switching current (max.)	10A
Switching function	Quick-break switch
Switching function latching	false
Switching Voltage	240V AC
Thread Size	M16
Type of control element	Roller lever
Type of electric connection	Cable entry metrical
Type of interface	None
Type of interface for safety communication	None
Width	58mm
Width sensor	58mm
With status indication	false
