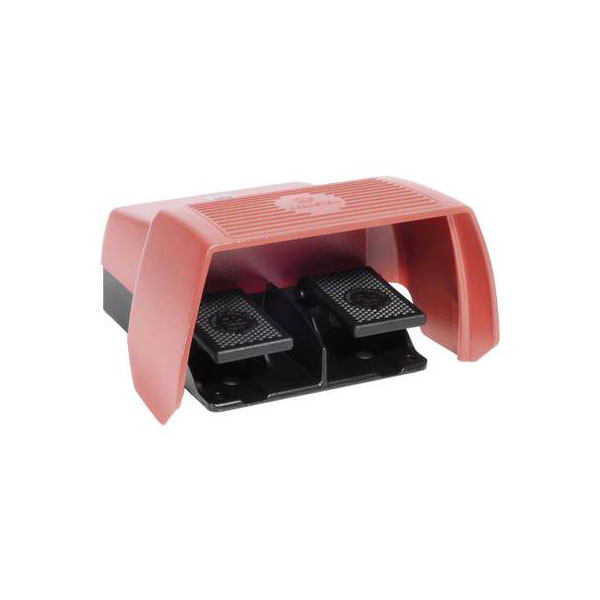

Bernstein Ltd. 6062610014 Foot Switch 240V AC 10A 2-Pedal IP65 Cover

The Bernstein foot switch F2-U1Z/U1Z UN is a durable 240 V AC device, featuring two pedals and a protective cover for enhanced safety. It is rated for 10 A, includes two makers and two breakers, and offers an IP65 protection rating. Typically used in industrial environments, this foot switch aids in hands-free operation of machinery.

Type	Foot switch
Contact Configuration	momentary
Operation	2-pedal
Switching Current	10A
Voltage Rating	240V AC
Colour	Red
Connection	Screws
Degree of protection (IP)	IP65
Degree of protection (NEMA)	1
Depth	250mm
Height	145mm
IP Rating	IP65
Material	Metal
Max. temperature	+80°C
Min. temperature	-30°C
Misc Attribute	F2-U1Z/U1Z UN
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Number of Switch Positions	2
Rated operation current Ie at AC-15, 230 V	3A
Suitable for safety functions	true
Switch position	2 x Off/(On)
Switch/button features	+ protective cover
Switching function latching	false
Thread Size	M20
Type of command	On or off
Width	277mm
With interlocking	false
With protection hood	true
With protective insulation	false
