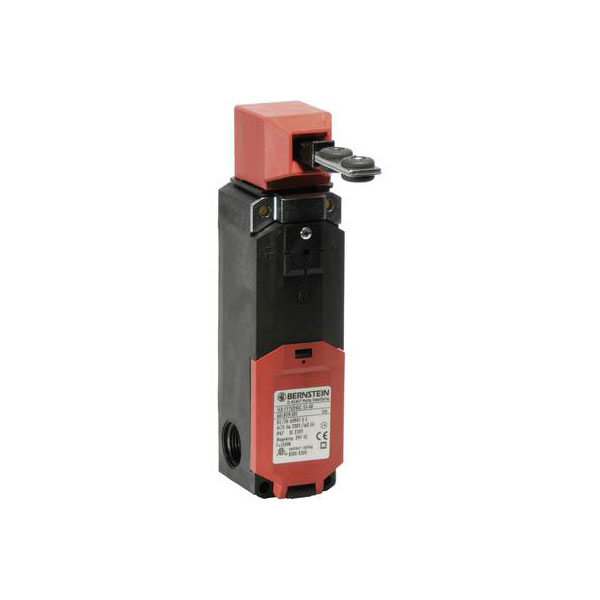

The Bernstein SLK-M-UC-55-R0-A0-L0-0 is a safety button designed for use with 24 V DC/AC systems, featuring a separate actuator and momentary operation. It is rated for 5 A and offers an IP67 protection level, making it suitable for industrial environments. Typical applications include emergency power-off situations and position switching in various machinery.
| Type |
Safety button |
| Ambient temperature during operating |
-25 - 70°C |
| Coating housing |
N/A |
| Connection |
Screws |
| Construction type housing |
Other |
| Degree of protection (IP) |
IP67 |
| Degree of protection (NEMA) |
4 |
| Depth |
45mm |
| Dim |
(W x H x D) 42.5 x 184 x 45 mm |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Functions |
momentary |
| Guard locking force |
1500N |
| Height |
184mm |
| Height of sensor |
45mm |
| Housing Material |
Plastic |
| IP Rating |
IP67 |
| Length of sensor |
184mm |
| Material |
Plastic |
| Misc Attribute |
SLK-M-UC-55-R0-A0-L0-0 |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
2 |
| Number of contacts as normally open contact |
2 |
| Number of safety auxiliary contacts |
2 |
| Operation type |
separate actuator |
| Rated control supply voltage magnet drive AC 50 Hz |
N/AV |
| Rated control supply voltage magnet drive AC 60 Hz |
N/AV |
| Rated control supply voltage magnet drive DC |
24 - 24V |
| Rated operation current Ie at AC-15, 125 V |
N/AA |
| Rated operation current Ie at AC-15, 230 V |
2.5A |
| Rated operation current Ie at AC-15, 24 V |
N/AA |
| Rated operation current Ie at DC-13, 125 V |
N/AA |
| Rated operation current Ie at DC-13, 230 V |
N/AA |
| Rated operation current Ie at DC-13, 24 V |
N/AA |
| Suitable for safety functions |
true |
| Switching current (max.) |
5A |
| Switching Voltage |
24V DC/AC |
| Thread Size |
M20 |
| Type of electric connection |
Cable entry metrical |
| Type of guard locking |
Operating current principle |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Type of switching contact |
Slow-action switch |
| Width |
42.5mm |
| Width sensor |
42.5mm |
| With auxiliary release |
false |
| With escape release |
false |
| With status indication |
false |
