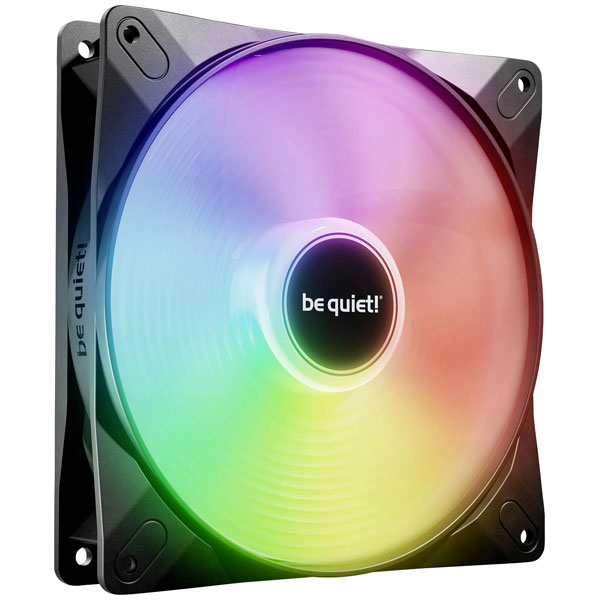

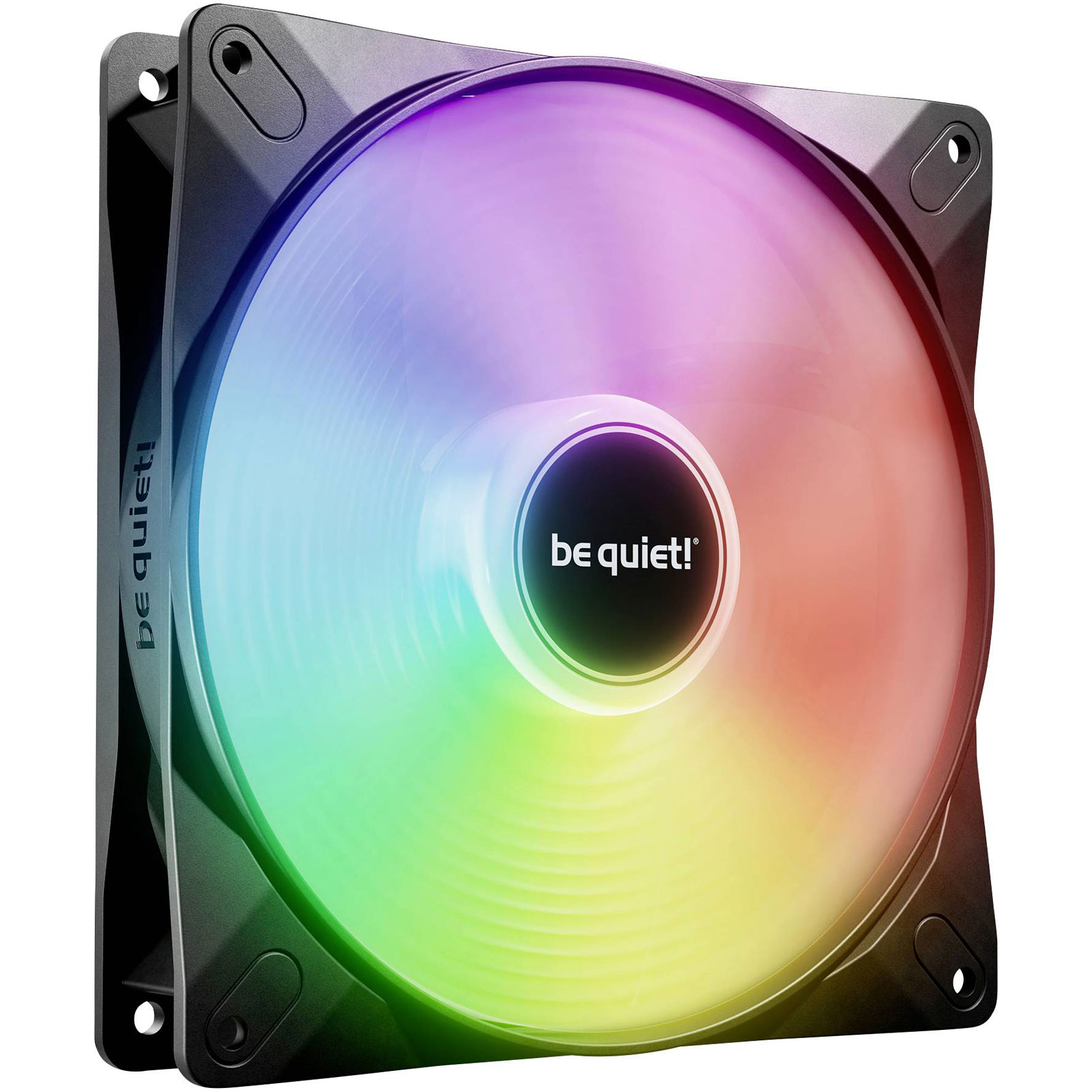

BeQuiet BL123, is an advanced LIGHT WINGS LX 120mm PWM high-speed PC fan, is designed to enhance cooling efficiency within computer enclosures. As a crucial component for thermal management, this fan features integrated LED lighting that optimises both aesthetics and airflow performance in computer casing environments. Engineered for quiet operation, it utilises pulse-width modulation (PWM) to dynamically adjust fan speeds in response to thermal conditions, ensuring optimal cooling for high-performance computing systems. Common applications include use in PC builds where maintaining low temperatures within tight constraints is essential, such as gaming rigs and professional workstations. The fan's robust construction and precision engineering make it a reliable solution for sustaining system longevity and performance under demanding workload conditions.
| Type |
PC fan |
| Fan Size |
120mm |
| Colour |
Black |
| Air Discharge |
105.1m³/h |
| Airflow |
105.1 m³/h |
| Bearing Type |
Rifle bearing |
| Cable Length |
0.5m |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Connection |
4-pin PWM |
| Content |
1 |
| Depth |
25mm |
| Dimensions |
(W x H x D) 120 x 120 x 25 mm |
| Fan connector |
4-pin |
| Fan current |
0.15 A |
| Fan diameter |
12 cm |
| Fan power consumption |
5.4 W |
| Fan voltage |
12 V |
| Height |
120mm |
| Illumination Colour |
Multi |
| Illumination LED |
Yes |
| LED connector type |
3-pin |
| Maximum air pressure |
2.51 mmH2O |
| Maximum Airflow |
61.8 cfm |
| Maximum Current |
0.45 A |
| Mean time between failures (MTBF) |
60000 h |
| Noise emission |
30.1 dB - 40 dB |
| Noise emission (max.) |
30.9dB |
| Noise level (high speed) |
30.9 dB |
| Number of fan blades |
9 |
| Number of fans |
1 fan(s) |
| Number of LEDs |
16 |
| Number of screws |
4 |
| Package depth |
164mm |
| Package height |
27mm |
| Package type |
Box |
| Package weight |
210 g |
| Package width |
122mm |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
60 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
1 pc(s) |
| Rotational speed (max) |
2100 RPM |
| Rotational speed (max.) |
2100U/min |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
10.9 kg |
| Shipping (inner) case height |
29cm |
| Shipping (inner) case length |
43.3cm |
| Shipping (inner) case width |
31.9cm |
| Suitable location |
Computer case |
| Type of bearing |
Rifle bearing |
| Voltage |
5 - 13.2 V |
| Warranty period |
3 year(s) |
| Weight |
135g |
| Width |
120mm |
