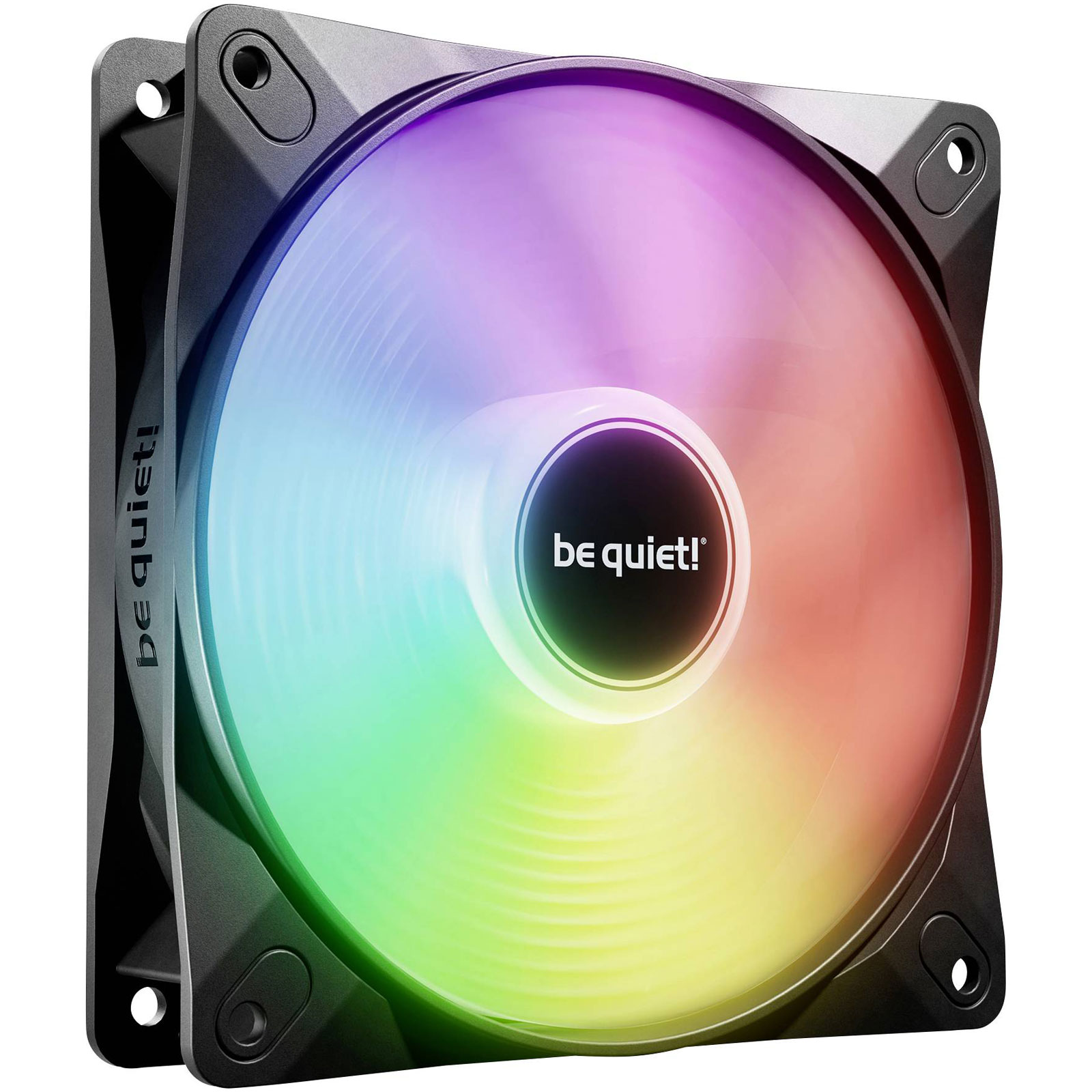

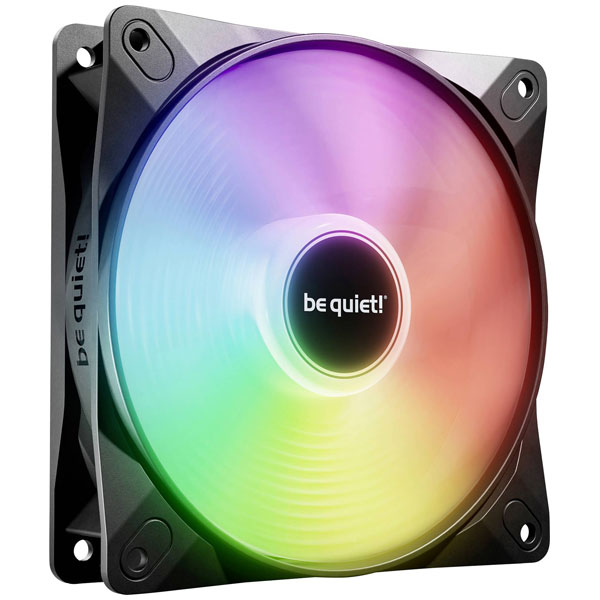

BeQuiet BL120 LIGHT WINGS LX 120mm PWM is an advanced computer fan engineered for optimal cooling performance in PC enclosures. Designed for use in computer casings, this 120mm fan features PWM (Pulse Width Modulation) capability, allowing precise control of fan speed to balance airflow and noise levels. Equipped with LED lighting, the fan not only aids in effective ventilation and cooling but also enhances the aesthetic appeal of the system it is integrated within. Typical engineering applications include use as an enclosure fan within desktop computers, where maintaining low temperatures for critical components such as CPUs and GPUs is essential for stable and efficient operation. The fan's design prioritises durability and operational efficiency, making it suitable for high-performance computing environments.
| Type |
PC fan |
| Fan Size |
120mm |
| Colour |
Black |
| Air Discharge |
87.5m³/h |
| Airflow |
87.5 m³/h |
| Bearing Type |
Rifle bearing |
| Cable Length |
0.5m |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Connection |
4-pin PWM |
| Content |
1 |
| Depth |
25mm |
| Dimensions |
(W x H x D) 120 x 120 x 25 mm |
| Fan connector |
4-pin |
| Fan current |
0.1 A |
| Fan diameter |
12 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Fan power consumption |
3.8 W |
| Fan weight |
133 g |
| Height |
120mm |
| Illumination Colour |
Multi |
| Illumination LED |
Yes |
| LED connector type |
3-pin |
| Maximum air pressure |
1.34 mmH2O |
| Maximum Airflow |
51.5 cfm |
| Maximum Current |
0.32 A |
| Mean time between failures (MTBF) |
60000 h |
| Noise emission |
20.1 dB - 30 dB |
| Noise emission (max.) |
25.5dB |
| Noise level (high speed) |
25.5 dB |
| Number of fan blades |
7 |
| Number of fans |
1 fan(s) |
| Number of LEDs |
16 |
| Number of screws |
4 |
| Package depth |
164mm |
| Package height |
27mm |
| Package weight |
170 g |
| Package width |
122mm |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
60 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
1 pc(s) |
| Rated Voltage |
12 V |
| Rotational speed (max) |
1600 RPM |
| Rotational speed (max.) |
1600U/min |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
10.8 kg |
| Shipping (inner) case height |
29cm |
| Shipping (inner) case length |
43.3cm |
| Shipping (inner) case width |
31.9cm |
| Suitable location |
Computer case |
| Type of bearing |
Rifle bearing |
| Voltage |
5 - 13.2 V |
| Weight |
133g |
| Width |
120mm |
