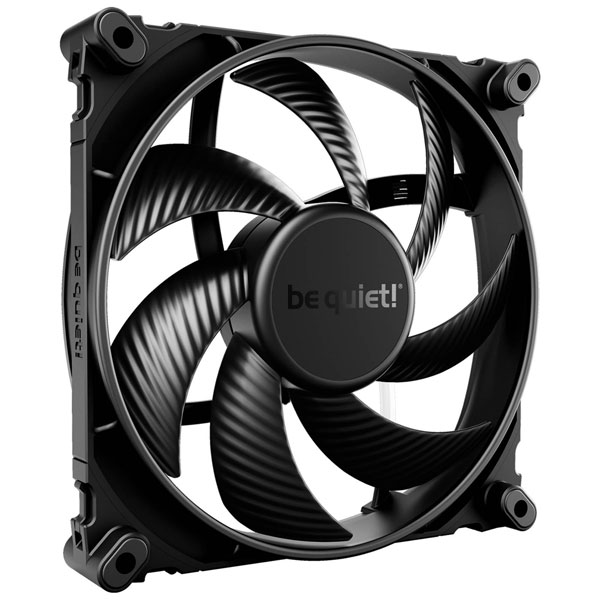

BeQuiet BL096 is an innovative computer fan from the SILENT WINGS 4 series, designed specifically for optimal casing ventilation. This PC fan measures 140 x 25 x 140 mm and features advanced airflow engineering to ensure efficient cooling performance with minimal noise output, making it ideal for use in both desktop enclosures and sophisticated cooling systems. Engineered with precision, the fan includes fluid-dynamic bearings and a high-quality motor to enhance long-term reliability and reduce operational vibration. With its robust design and focus on silent operation, the BeQuiet BL096 is well-suited for engineers looking to maintain thermal management in high-performance computing systems or workstations where consistent temperature regulation is essential.
| Type |
PC fan |
| Fan Size |
140mm |
| Colour |
Black |
| Air Discharge |
87.16m³/h |
| Airflow |
87.16 m³/h |
| Bearing Type |
Fluid Dynamic Bearing (FDB) |
| Cable Length |
0.5 m |
| Certification |
CE / ROHS / RU / UKCA / TÜV / WEEE |
| Connection |
4-pin |
| Content |
1 |
| Country of origin |
China |
| Depth |
140mm |
| Design Height |
25mm |
| Dimensions |
(W x H x D) 140 x 25 x 140 mm |
| Fan connector |
4-pin |
| Fan diameter |
14 cm |
| Harmonized System (HS) code |
84733080 |
| Height |
25mm |
| Maximum air pressure |
0.92 mmH2O |
| Maximum Airflow |
51.3 cfm |
| Maximum Current |
0.33 A |
| Mean time between failures (MTBF) |
300000 h |
| Noise emission |
10.1 dB - 20 dB |
| Noise emission (max.) |
13.6dB |
| Noise level (high speed) |
13.6 dB |
| Number of clips |
4 |
| Number of screws |
4 |
| Package depth |
206.5mm |
| Package height |
31mm |
| Package weight |
387 g |
| Package width |
156mm |
| Power consumption (typical) |
3.6 W |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
32 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
1 pc(s) |
| Rated current |
0.3 A |
| Rated Voltage |
12 V |
| Rotational speed (max) |
1100 RPM |
| Rotational speed (max.) |
1100U/min |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
13.6 kg |
| Shipping (inner) case height |
38.8cm |
| Shipping (inner) case length |
46.3cm |
| Shipping (inner) case width |
31.7cm |
| Suitable location |
Computer case |
| Type of bearing |
Fluid dynamic bearing |
| Voltage |
5 - 13.2 V |
| Weight |
220g |
| Width |
140mm |
