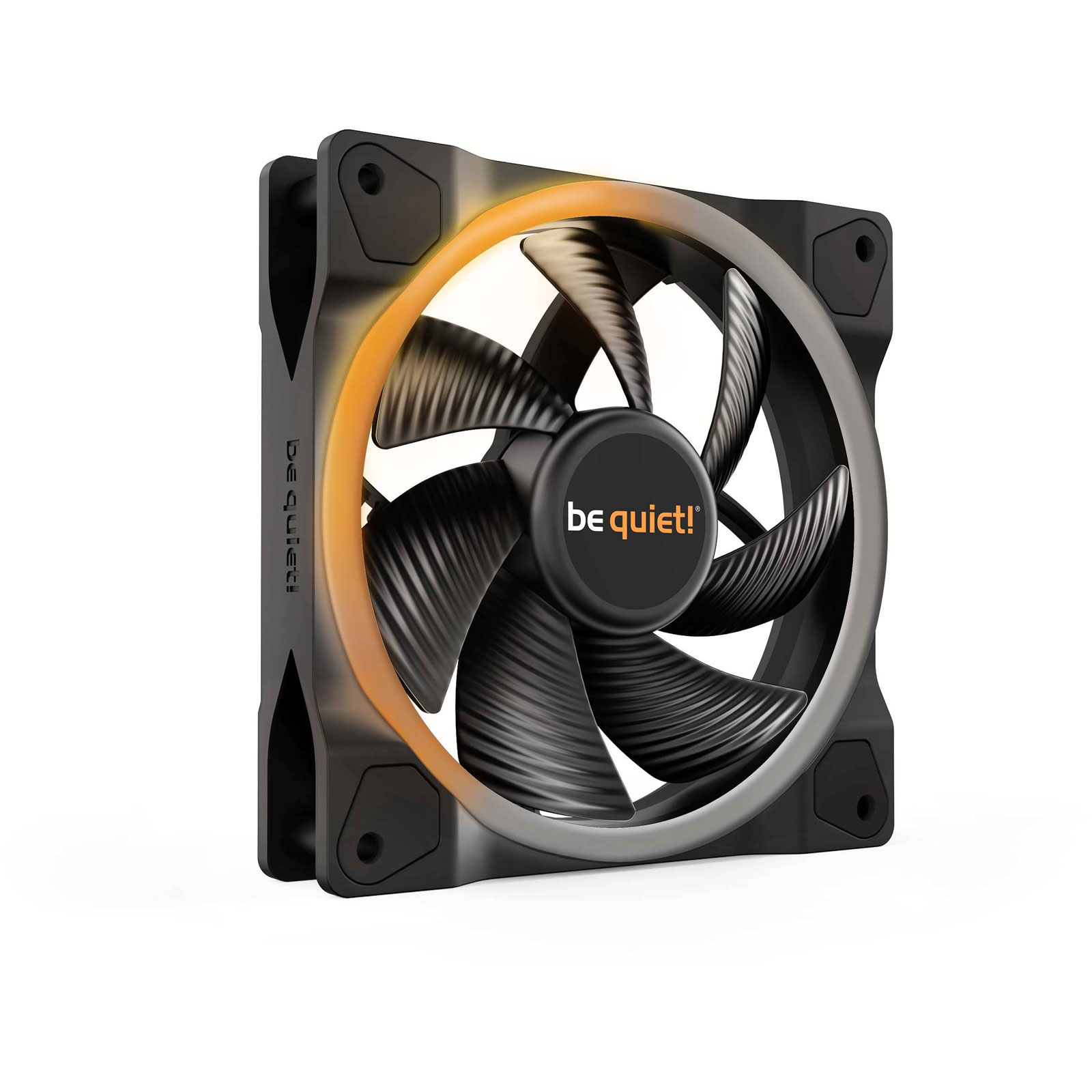

BeQuiet's BL072 is a 120x25x120mm Light Wings PC fan, adeptly designed to provide reliable ventilation and effective cooling within computer enclosures. Featuring advanced LED lighting, this fan ensures optimal thermal management while adding a subtle aesthetic enhancement to the system's interior. The BL072's robust construction and precise engineering make it suitable for use in various computer cooling applications, including desktop cases and high-performance PC builds where efficient air flow is crucial. With its emphasis on functional design and durable performance, this fan serves as a key component in maintaining system stability and preventing overheating in densely packed electronic assemblies.
| Type |
PC fan |
| Fan Size |
120mm |
| Colour |
Black |
| Air Discharge |
70.53m³/h |
| Airflow |
70.53 m³/h |
| Bearing Type |
Rifle bearing |
| Cable Length |
0.5 m |
| Compatible processor series |
Not supported |
| Compliance certificates |
CE, RoHS, WEEE |
| Connection |
4-pin |
| Content |
1 |
| Country of origin |
China |
| Depth |
120mm |
| Design Height |
25mm |
| Dimensions |
(W x H x D) 120 x 25 x 120 mm |
| Fan connector |
4-pin |
| Fan diameter |
12 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Fan weight |
200 g |
| Harmonized System (HS) code |
84733080 |
| Height |
25mm |
| Illumination Colour |
Multi |
| Illumination LED |
Yes |
| Maximum air pressure |
1.66 mmH2O |
| Maximum Airflow |
41.51 cfm |
| Mean time between failures (MTBF) |
60000 h |
| Noise emission |
20.1 dB - 30 dB |
| Noise emission (max.) |
20.6dB |
| Noise level (high speed) |
20.6 dB |
| Number of screws |
4 |
| Package depth |
153mm |
| Package height |
29.5mm |
| Package weight |
267 g |
| Package width |
133mm |
| Power consumption (typical) |
4.56 W |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
30 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
1 pc(s) |
| Rated current |
0.6 A |
| Rated Voltage |
12 V |
| Rotational speed (max) |
1700 RPM |
| Rotational speed (max.) |
1700U/min |
| Safety current |
0.38 Ah |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
8.64 kg |
| Shipping (inner) case height |
18.2cm |
| Shipping (inner) case length |
41.8cm |
| Shipping (inner) case width |
32.5cm |
| Suitable location |
Computer case |
| Supported processor sockets |
Not supported |
| Sustainability compliance |
Yes |
| Type of bearing |
Fluid dynamic bearing |
| Voltage |
5 - 13.2 V |
| Weight |
0.265 |
| Width |
120mm |
