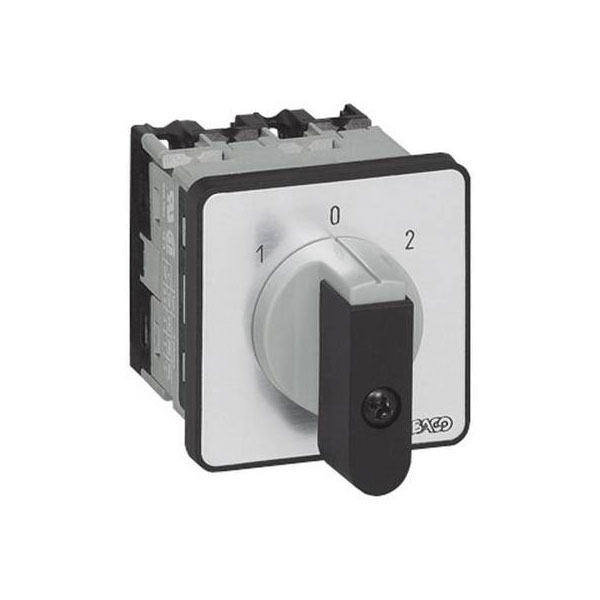

BACO NC03GQ1 Changeover Switch 16A 2x30° Grey/Black

The BACO NC03GQ1 is a changeover switch designed for a 16 A input, featuring a grey and black colour scheme. Manufactured by BACO, it offers 2 x 30° switching positions, making it suitable for controlling circuit configurations. This switch is typically used in industrial and commercial electrical systems for reliable current management.

Connection	Plug & Clip
Depth	56mm
Functions	latch
IP Rating	IP65
Length	48mm
Misc Attribute 1	6 contacts
Mounting Type	Centre lock
Number of pins	3
Operation type	Toggle
Print motif	1/0/2
Recess Diameter	30mm
Size/ Dimensions	(L x W) 48 mm x 48 mm
Switching angle	2 x 30 °
Switching current (max.)	16A
Type	Changeover switch
Width	48mm
