B+B Sensors PTFE Protective Membranes Self-Adhesive

B+B Sensors Brand: B+B Sensors

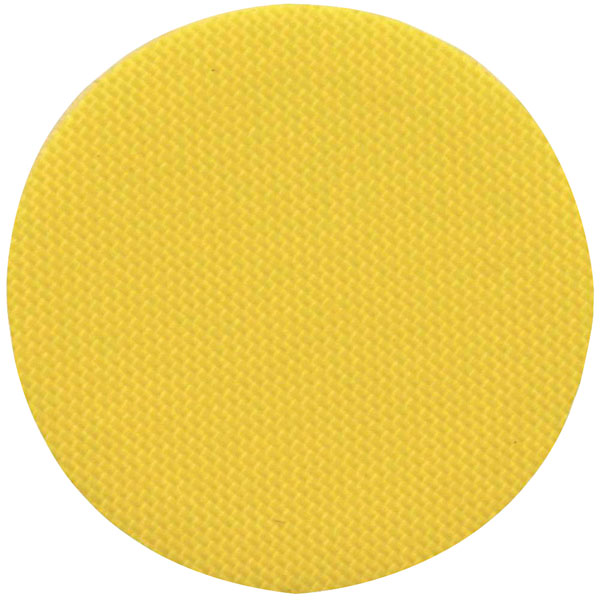

A range of self-adhesive PTFE protective membranes, for use with sensors and other electronic devices, that are hydrophobic and oil repellent as well as protecting against contamination by dust, dirt and other contaminants. The membranes have a high airflow rate so that the protected sensors benefit from unimpaired measurement performance. Suitable for use in applications such as sensors, and in the process and automotive industries.

  • Available in a choice of sizes
  • Easy to handle and install
  • Durable and has a long life
  • Increases durability of protected devices
  • Laminated with acrylic adhesive on carrier foil
  • Can be used in pick and place assembly
  • Supplied in packs of 12
Description Image Product Buy Pricing (Ex VAT) Type
B+B Sensors DAM-AD7 Protective Membrane Pack of 12
B+B Sensors DAM-AD7 Protective Membrane Pack of 12
Standard range
Order code: 64-3641
MPN: DAM-AD7

27 in stock, despatched in 4 working days
1+ £11.02
Price per unit Ex VAT 		Protective membrane
B+B Sensors DAM-AD17 Protective Membrane Pack of 12
B+B Sensors DAM-AD17 Protective Membrane Pack of 12
Standard range
Order code: 64-3644
MPN: DAM-AD17

90 in stock, despatched in 4 working days
1+ £11.29
Price per unit Ex VAT 		Protective membrane
Order codePart numberOuter diameterInner diameter
64-3641DAM-AD76.7mm5.3mm
64-3644DAM-AD1717mm13mm

MaterialPTFE
Water pressure>1 bar
Oil repellentClass 8 (scale 0 to 8)
Operating temperature range-37°C to +121°C
Airflow rate500ml/min/cm² @ 1 psi
Air permeability>500g/m²/h
Depth0.13mm
Pore size0.7µm
IP Protection classIP67
Processing temperature min.10°C
