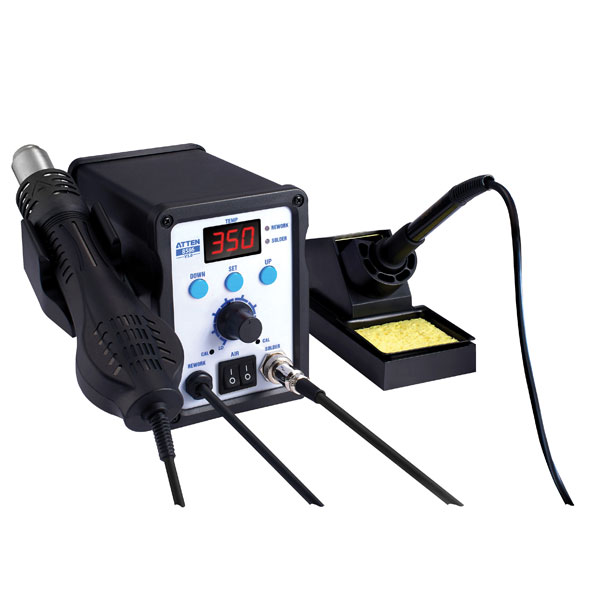

Atten AT8586 Double Channel Soldering & Hot Air Rework System Station

Atten Brand: Atten
<p>The Atten AT8586 is an integrated soldering station and hot air rework station, housed in a convenient single compact unit.</p>
  • LED display shows working temperatures and status
  • Push button setting
  • Low-voltage soldering iron helps protect sensitive electronic components
  • Intelligent cooling system and deferred power-off help to extend hot air gun life
  • Auto-sleep function saves energy
  • Intelligent malfunction detection and indication
  • Atten type AT8586
Total power750W (Max.)
Power source220V AC ±10%, 50Hz
Display modeLED display
Hot air rework station
Power consumption700W (Max.)
Temperature range100 to 500°C
PumpFan type
Noise<52dB(A)
Air flow120 litres / minute (Max.)
Soldering iron
Power consumption50W (Max.)
Temperature range200 to 480°C
Temperature stability±2°C (still air, no load)
Temperature accuracy±15°C
Tip-to-ground impedance<2Ω
Tip-to-ground potential<2mV
HeaterQuad-wire stainless steel
Heater voltage28V AC
Soldering tips900M series
Dimensions (L x W x H)167 x 100 x 131mm
Net weight2.6kg
