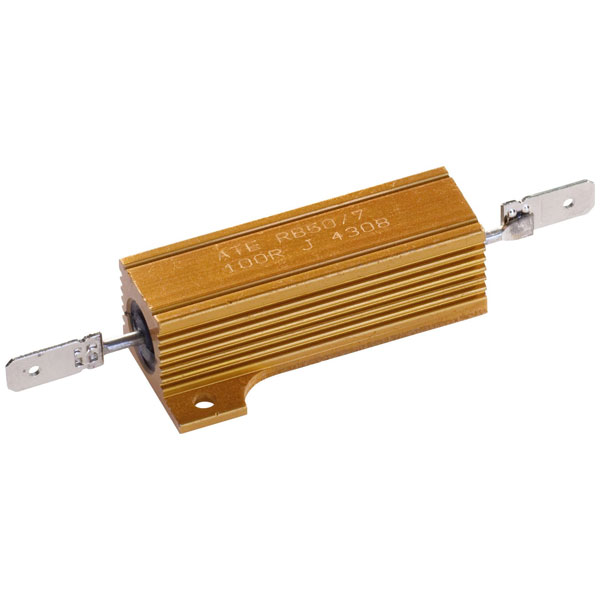

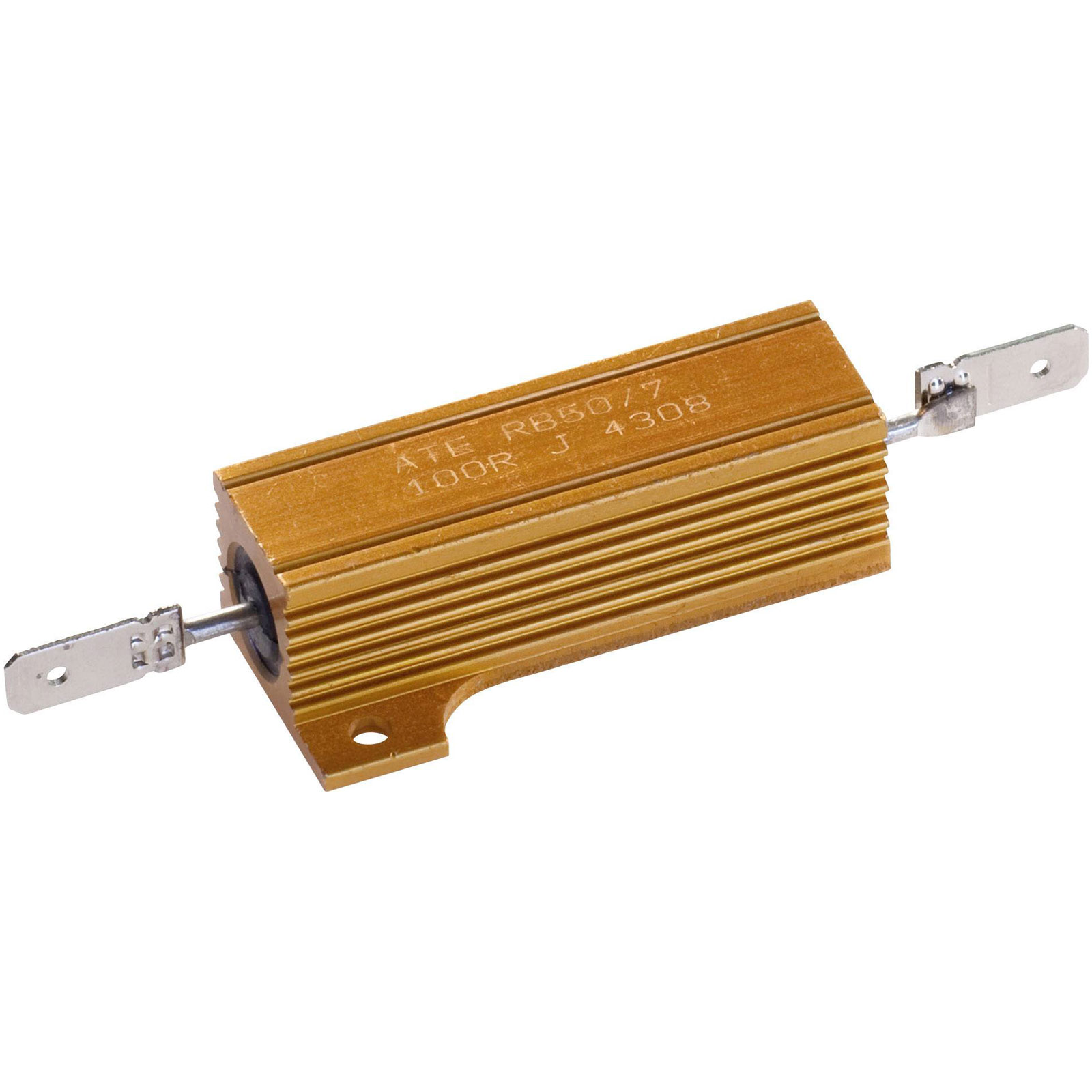

ATE Electronics RB50/7-33R-J Power Resistors 50W 33R 5% Axial Lead

ATE Electronics RB50/7-33R-J is a power resistor designed to deliver reliable performance under demanding conditions. This resistor features a power rating of 50 watts and a resistance value of 33 ohms with a tolerance of 5%, making it suitable for applications requiring high impedance control. The axial lead configuration facilitates easy integration into a variety of circuit designs, while the use of resistance wire ensures enhanced durability and stable thermal performance. Commonly employed in industrial power supplies, audio equipment, and electronic test systems, the RB50/7-33R-J is ideal for scenarios where robust power dissipation and precise resistance are crucial.

Type	High power resistor
Resistance	33Ω
Power Rating	50W
Content	1
Dimensions	(L x W x H) 91 x 29.2 x 16 mm
Height	16mm
Insulation Resistance	10000MΩ
Length	91mm
Maximum Temperature	250°C
Minimum Temperature	-55°C
Product Type	High power Resistor
Temperature Coefficient	20ppm
Threshold Voltage	1250
Tolerance ±	5%
Width	29.2mm
