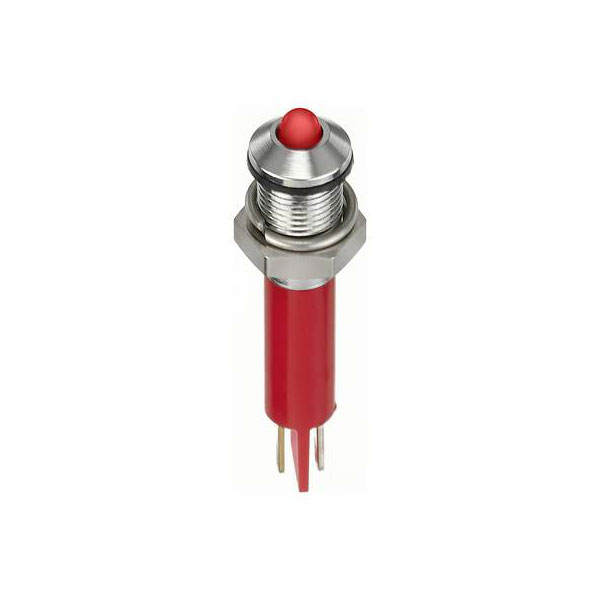

APEM Q8P1CXXR24E LED indicator light 80 mcd Red Prominent Industrial Use

APEM Q8P1CXXR24E is a 4.8mm LED indicator notable for its high visibility and robust design, featuring a prominent red lens with a brightness of 80 millicandelas. Engineered for reliable performance, this LED indicator is well-suited for a variety of industrial and commercial applications, particularly where clear visual indication is crucial, such as in control panels, switchgear, and instrumentation displays. The device operates efficiently with a supply voltage of 24 volts, ensuring low power consumption while maintaining optimal illumination. Designed for panel mounting, the Q8P1CXXR24E simplifies integration into existing systems, making it an ideal choice for engineers seeking a reliable indicator light solution.

Type	LED indicator light
Case Colour	Red
Colour	Red
Connection	Solder tag
Content	1
Diameter	8mm
Dimensions	(Ø x H) 8 mm x 28.75 mm
Height	28.75mm
IP Rating	IP67
Lifespan	100000 hours
Light intensity I(V)	80mcd
Max. operating voltage	24V DC
Maximum Temperature	65°C
Operating Current	20mA
Operating Voltage	24 V DC (max)
Product Type	LED indicator light
Recess diameter	8mm
Shape	Prominent
