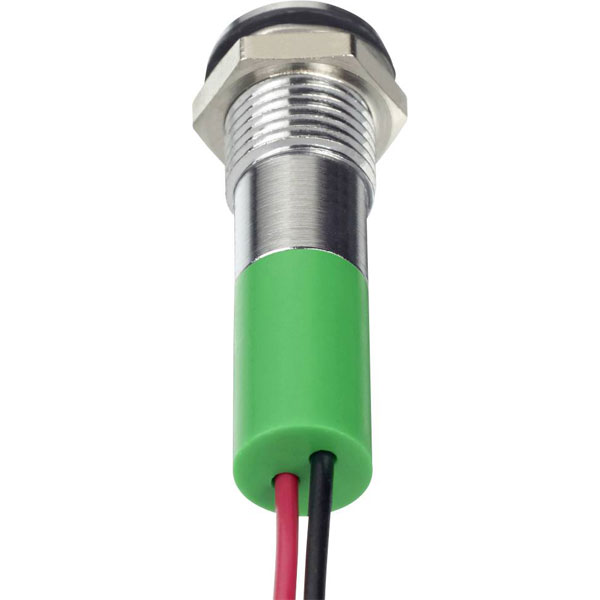

APEM Q8F3CXXG12E LED indicator light Green Flush 6 mcd Panel Indicators

APEM Q8F3CXXG12E represents a robust LED indicator designed for efficient signalling applications that require a discreet flush-mounted design. This component measures 4.8mm in diameter and is equipped with a green LED, producing an illumination intensity of 6 millicandelas. The indicator is suited for integration into control panels, instrumentation, and electronic circuits where visual status indication is needed. Utilising a durable construction, it ensures reliable performance in environments demanding precision and consistency. Suitable for applications across automotive, industrial, and consumer electronics, the APEM Q8F3CXXG12E supports engineers in achieving effective visual communication within their systems.

Type	LED indicator light
Case Colour	Green
Colour	Green
Connection	Braid
Content	1
Diameter	8mm
Dimensions	(Ø x H) 8 mm x 22.5 mm
Height	22.5mm
IP Rating	IP67
Lifespan	100000 hours
Light intensity I(V)	6mcd
Max. operating voltage	12V DC
Maximum Temperature	65°C
Operating Current	20mA
Operating Voltage	12 V DC (max)
Product Type	LED indicator light
Recess diameter	8mm
Shape	Flush
