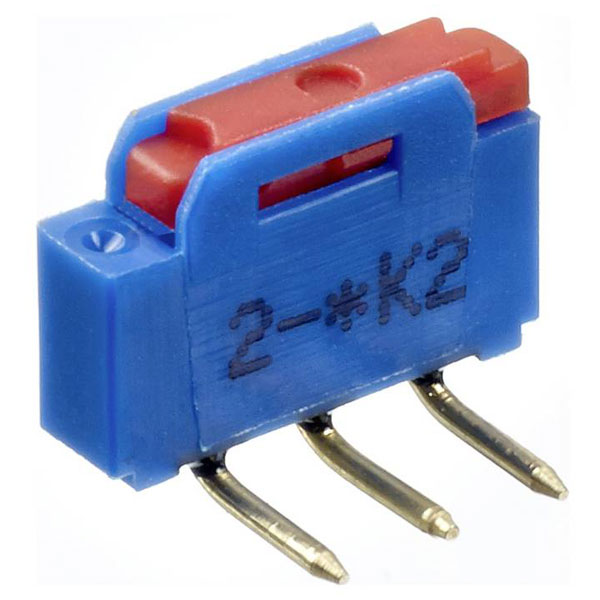

APEM NK236W NK Series Slide Switch 12V DC 1mA On/(On) 1pc Compact

The APEM NK236W is a slide switch from the NK Series, designed for a 12 V DC and 1 mA operation. This fader switch features a 1 x On/(On) configuration. Typically, it is used in low-power electronic devices for reliable switching.

Type	Slide switch
Contact Configuration	SPDT
Switch Function	On/(On)
Current Rating (Amps)	1mA
Actuator Type	Flush Actuator
Connection	Solder pins
Contact Material	Ni
CS	2.54mm
Dim	(L x W x H) 7 x 5 x 2 mm
Height	2mm
Length	7mm
Misc Attribute	NK Series
Switch position	1 x On/(On)
Switching Voltage	12V DC
Width	5mm
