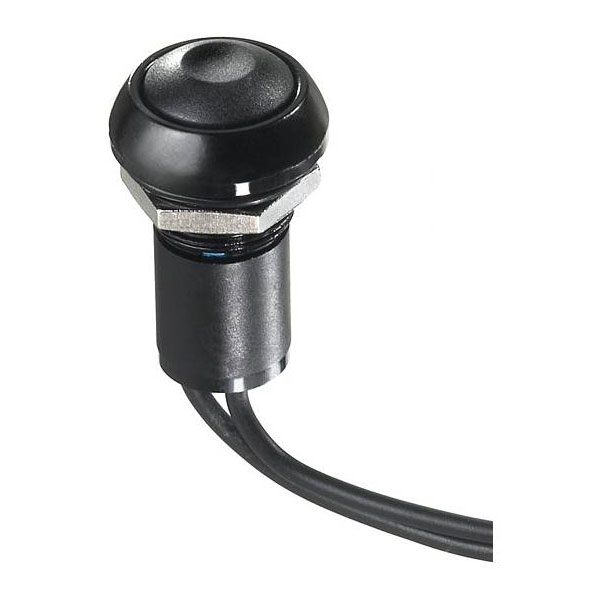

APEM IPR3FAD6 IP Series Pushbutton Switch 28V DC 5A 12x20mm IP69K

APEM IPR3FAD6 is a robust push-button switch from the IP Series, designed for demanding environments. This switch operates at a voltage of 28 V DC and can handle a current of up to 5 A, making it suitable for various electrical and electronic applications. It features a momentary ON/OFF function and is housed in a compact design measuring 12 mm in diameter and 20 mm in height. Certified with an IP69K rating, it is highly resistant to dust and high-pressure water jets, making it ideal for use in harsh industrial settings, such as automotive or marine applications, where environmental exposure is a concern. This single push-button switch ensures reliable performance and durability, providing engineers with a dependable solution for control panel and automation systems.

Type	IP Series
Casing/button colour	Red
Connection	Braid
Contact Material	Silver, gold plated
Content	1
Diameter	12mm
Dimensions	(Ø x H) 12 mm x 20 mm
Durability	200000
Functions	momentary
Height	20mm
IP Rating	IP69K
Maximum Temperature	85°C
Product Type	Pushbutton
Switch position	1 x On/(Off)
Switching current (max.)	5A
Switching Voltage	28V DC
