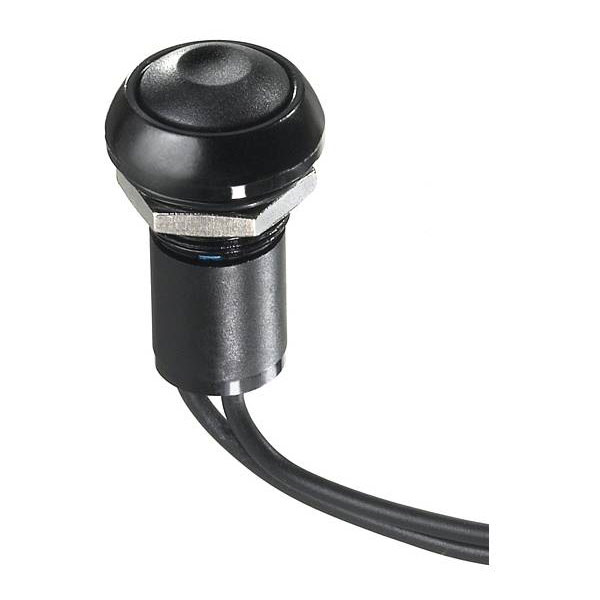

APEM IPR3FAD2 IP Series Pushbutton 28V DC 5A On/(Off) 12x20mm IP69K

APEM IPR3FAD2 IP Series Pushbutton is a robust switch designed for demanding environments, featuring a compact design with dimensions of 12 mm in diameter and 20 mm in height. This push-button switch is rated for a maximum operating capacity of 28 V DC and can handle a current up to 5 A, suitable for applications requiring a momentary (1 x On/(Off)) operation. With an IP69K rating, it offers superior protection against dust ingress and high-pressure water jets, making it an ideal choice for use in harsh conditions such as industrial control panels, automotive systems, and outdoor equipment. Engineered for reliability and longevity, the IPR3FAD2 model is part of APEM's IP Series, which is renowned for its durability and exceptional performance in critical applications where environmental sealing is paramount.

Type	IP Series
Contact Configuration	SPST
Switch Function	On/(Off)
Current Rating	5A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Casing/button colour	Black
Connection	Braid
Contact Material	Silver, gold plated
Content	1
Diameter	12mm
Dimensions	(Ø x H) 12 mm x 20 mm
Durability	200000
Functions	momentary
Height	20mm
IP Rating	IP69K
Max. temperature	85°C
Maximum Temperature	85°C
Product Type	Pushbutton
Switch position	1 x On/(Off)
Switching current (max.)	5A
Switching Voltage	28V DC
