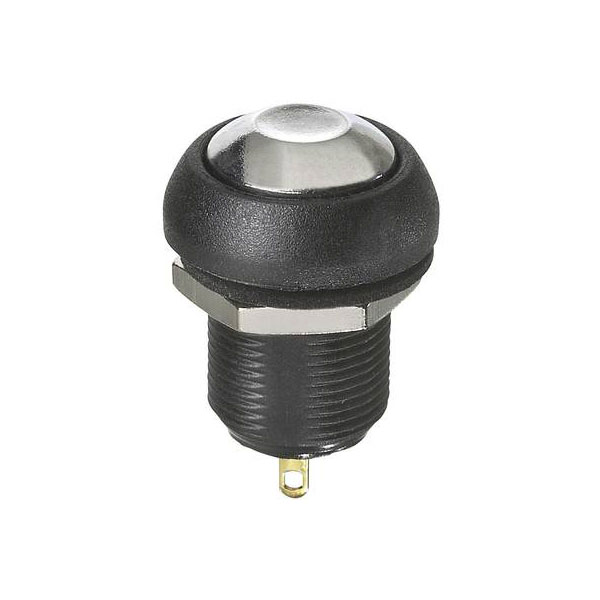

APEM ILR3SADB Pushbutton 24V DC 2A Off/(On) Momentary IP67

The APEM ILR3SADB pushbutton is a durable switch designed for 24 V DC applications, capable of handling 2 A current, and featuring a momentary off/(on) function. With an IP67 rating, it offers excellent protection against dust and water, making it ideal for harsh environments. Common applications include industrial machinery controls and automotive systems.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Board thickness (max.)	10mm
Casing/button Colour	Dark blue
Connection	Solder tag
Contact Material	Silver, gold plated
IP Rating	IP67
Lighting Type	None
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute 1	Round-arched
Mounting Type	Screw mounting
Recess depth	16.4mm
Recess Diameter	12mm
Switch/button features	Convex
Switching Voltage	24V DC
