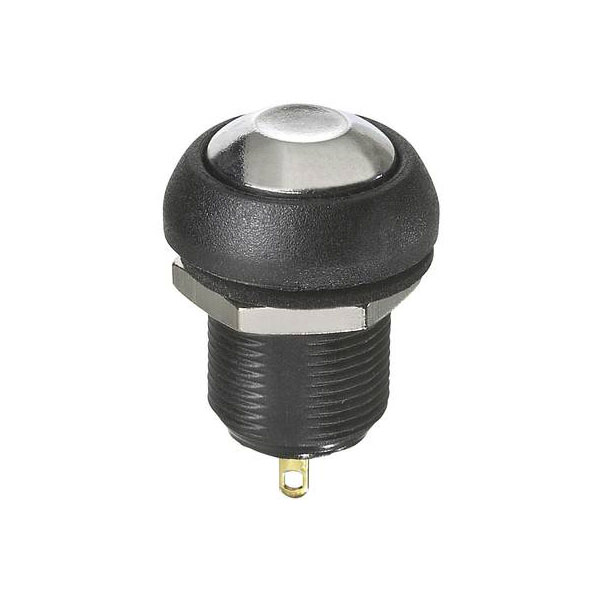

APEM ILR3SAD6 Pushbutton 24V DC 2A Off/(On) IP67 Momentary

The APEM ILR3SAD6 pushbutton switch, rated for 24 V DC and 2 A, features an IP67 protection rating for robust performance in harsh environments. This momentary switch with a 1 x Off/(On) configuration is ideal for industrial control panels and equipment. It is engineered for durable, reliable use in demanding applications.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Panel Cutout Dimensions	12
Board thickness (max.)	10mm
Casing/button Colour	Red
Connection	Solder tag
Contact Material	Silver, gold plated
IP Rating	IP67
Lighting Type	None
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute 1	Round-arched
Mounting Type	Screw mounting
Recess depth	16.4mm
Recess Diameter	12mm
Switch/button features	Convex
Switching Voltage	24V DC
