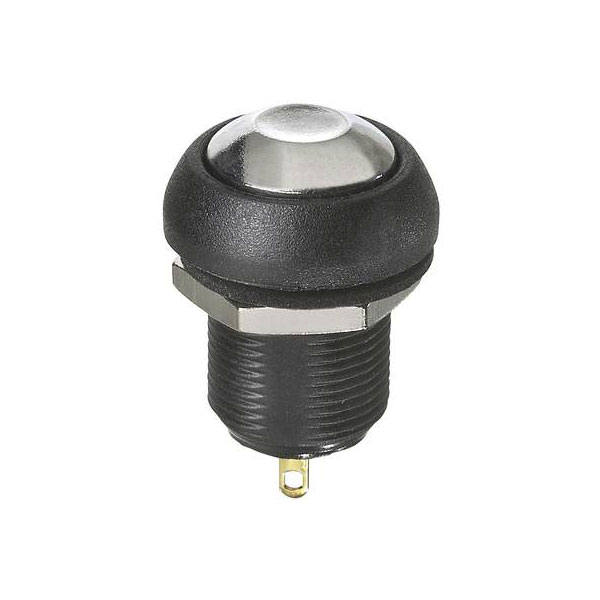

APEM ILR3SAD5 Pushbutton 24V DC 2A Off/(On) Momentary IP67

Manufactured by APEM, the ILR3SAD5 pushbutton switch operates at 24 V DC and 2 A with an Off/On momentary function. Featuring an IP67 rating, it is highly resistant to dust and water, making it suitable for harsh environments. This pushbutton is ideal for industrial control panels and equipment where reliable and durable switching is required.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Panel Cutout Dimensions	12
Board thickness (max.)	10mm
Casing/button Colour	Yellow
Connection	Solder tag
Contact Material	Silver, gold plated
IP Rating	IP67
Lighting Type	None
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute 1	Round-arched
Mounting Type	Screw mounting
Recess depth	16.4mm
Recess Diameter	12mm
Switch/button features	Convex
Switching Voltage	24V DC
