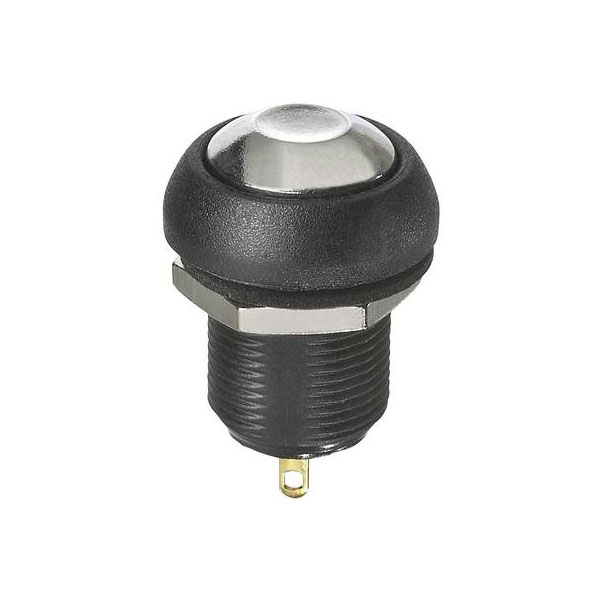

APEM ILR3SAD2 Pushbutton 24V DC 2A Off/(On) Momentary IP67 Rated

The APEM ILR3SAD2 pushbutton switch, designed for 24 V DC and 2 A, is a momentary Off/(On) switch with an IP67 rating, indicating excellent resistance to dust and water. Manufactured by APEM, it is ideal for applications requiring reliable performance in harsh environments. Its typical uses include industrial machinery and control panels where robust and durable operation is essential.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Panel Cutout Dimensions	12
Board thickness (max.)	10mm
Casing/button Colour	Black
Connection	Solder tag
Contact Material	Silver, gold plated
IP Rating	IP67
Lighting Type	None
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute 1	Round-arched
Mounting Type	Screw mounting
Recess depth	16.4mm
Recess Diameter	12mm
Switch/button features	Convex
Switching Voltage	24V DC
