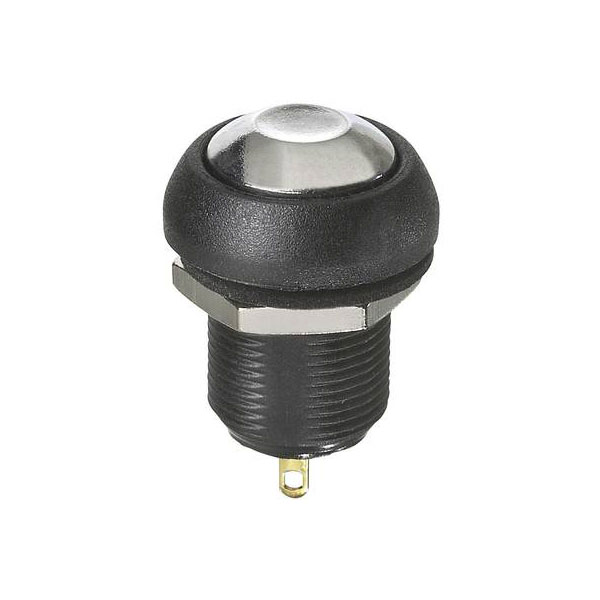

APEM ILR3SAD1 Pushbutton 24V DC 2A IP67 Momentary Off/(On)

The APEM ILR3SAD1 pushbutton switch is designed for use with 24 V DC and can handle a current of 2 A. It features an Off/(On) momentary action and boasts an IP67 rating, ensuring resistance to dust and water. This pushbutton switch is suitable for industrial control panels and other applications requiring robust, reliable switching.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Panel Cutout Dimensions	12
Board thickness (max.)	10mm
Casing/button Colour	Blue
Connection	Solder tag
Contact Material	Silver, gold plated
IP Rating	IP67
Lighting Type	None
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute 1	Round-arched
Mounting Type	Screw mounting
Recess depth	16.4mm
Recess Diameter	12mm
Switch/button features	Convex
Switching Voltage	24V DC
