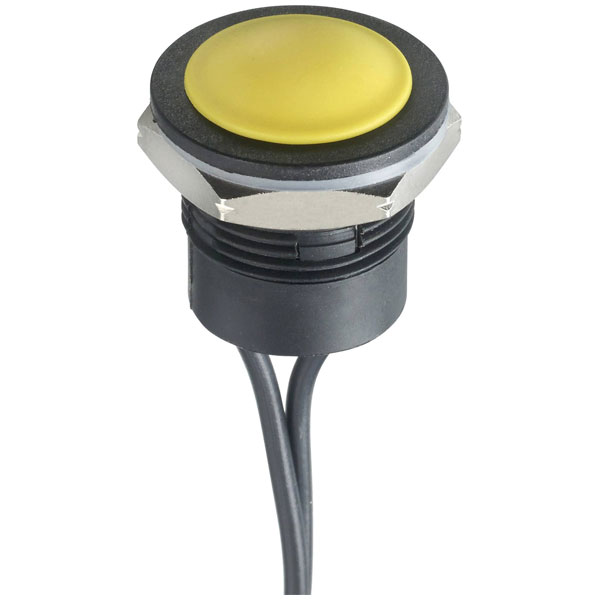

APEM IAR3F1500 IA Series Pushbutton 24V DC 2A Momentary IP67 16x20mm

The APEM IAR3F1500 is a pushbutton switch in the IA Series that operates on 24 V DC at 2 A, featuring a momentary On/(Off) configuration. With a compact size of 16 mm x 20 mm and an IP67 rating, it suits demanding environments. These switches are ideal for applications requiring durability and reliable performance, such as industrial equipment and control panels.

Type	Pushbutton
Contact Configuration	1 x On/(Off)
Switch Function	Momentary
Current Rating	2A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	16
(Ø)	16mm
Casing/button colour	Yellow
Connection	Solder tag
Contact Material	Silver, gold plated
Dim	(Ø x H) 16 mm x 20 mm
Durability	1000000
Height	20mm
IP Rating	IP67
Max. temperature	65°C
Misc Attribute	IA Series
Switching Voltage	24V DC
