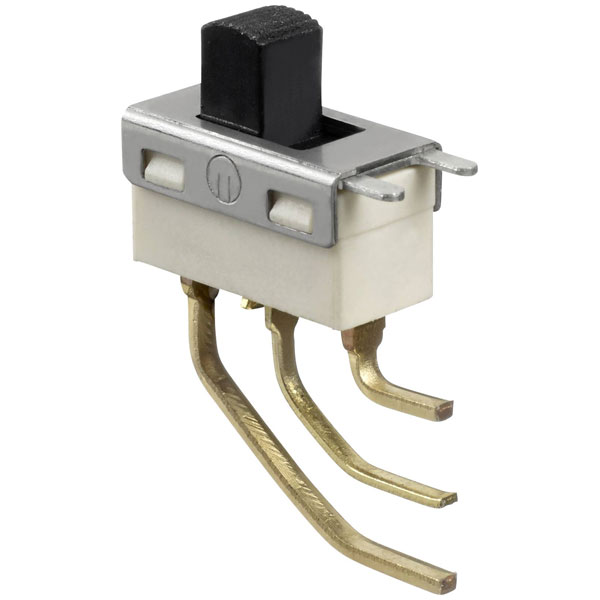

APEM GH36WW00000 G Series Slide Switch 20V DC On/(On) 1pc

The APEM GH36WW00000 G Series is a slide switch designed for 20 V DC applications. Featuring a 1 x On/(On) configuration, this durable switch is ideal for precise control in electronic devices. Common uses include audio mixing consoles and other equipment requiring reliable fader functionality.

Type	Slide switch
Contact Configuration	SPDT
Switch Function	On/(On)
Current Rating (Amps)	20 mA
Actuator Type	Raised Actuator
Connection	Solder pins
Contact Material	Brass contacts, gold plated (CD)
CS	10.16mm
Dim	(L x W x H) 12.7 x 6.6 x 10.15 mm
Electrical lifespan	60000
Height	10.15mm
Length	12.7mm
Misc Attribute	G Series
Switch position	1 x On/(On)
Switching Voltage	20V DC
Width	6.6mm
